Flex PCB assembly troubleshooting is a structured process that identifies defects, verifies root causes, and prevents repeated production failures.
Diagnose each symptom before rework, because a quick repair can hide a deeper material or process problem. Common flex PCB assembly problems include solder bridges, cold joints, component misalignment, delamination, warpage, lifted pads, and cracked traces. Link each symptom to its production stage, then verify the suspected cause using measured evidence.
During any investigation, follow your product specification, material datasheets, solder paste datasheet, and applicable acceptance standard.
Table of Contents

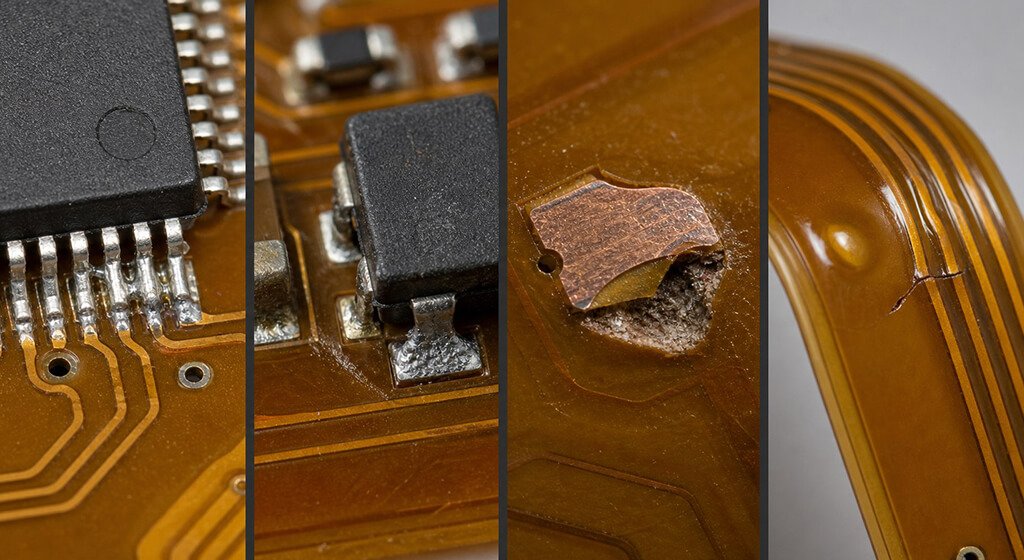

1. Which Flex PCB Assembly Defects Should You Check First?
Begin with the visible symptom, then choose an inspection method that can confirm the suspected physical failure.
Observed Symptom | Likely Defect | Common Root Cause | How You Can Verify It | First Corrective Action |
Dull, Rough, Or Cracked Joint | Cold solder joint | Inadequate heat, oxidation, or poor wetting | Microscope, AOI, and profile review | Clean surfaces and correct the reflow profile |
Unwanted Solder Connection | Solder bridge | Excess paste, poor alignment, or unsuitable aperture | SPI, AOI, and continuity testing | Remove the bridge, then correct paste deposition |
Component Sits Outside Its Pads | Component misalignment | Board movement, placement error, or uneven paste | AOI and placement record review | Improve carrier support and placement setup |
One Chip End Rises Vertically | Tombstoning | Unequal paste volume or uneven wetting | SPI, AOI, and thermal review | Balance apertures, pad design, and heating |
Copper Pad Separates From Substrate | Lifted pad | Excessive heat, force, or repeated rework | Microscope and continuity testing | Stop rework and assess remaining bond strength |
Bubbles Appear Between Layers | Delamination | Moisture, weak adhesion, or excessive thermal stress | Visual inspection, X-ray, or microsection | Quarantine the lot and review moisture controls |
Board Curves After Reflow | Warpage | Poor support, uneven copper, or temperature gradients | Flatness measurement and profile review | Improve carrier design and thermal balance |
Circuit Opens Only During Bending | Cracked copper trace | Small bend radius, stress concentration, or installation damage | Controlled flex continuity test | Locate the crack and review the bend design |
BGA Or QFN Fails Electrically | Hidden solder defect | Voids, opens, bridging, or head-in-pillow | X-ray and functional testing | Confirm the root cause before local rework |
The IPC-9111 troubleshooting guide links assembly defects to design, material, equipment, and process causes. Add flex-specific factors such as carrier flatness, dimensional movement, moisture exposure, and post-assembly bending.
2. Why Does Flex PCB Assembly Fail More Easily Than Rigid PCB Assembly?
Your flexible circuit behaves differently during printing, placement, reflow, installation, and operation. Control movement, moisture, temperature, and strain more carefully than you would during rigid-board assembly.

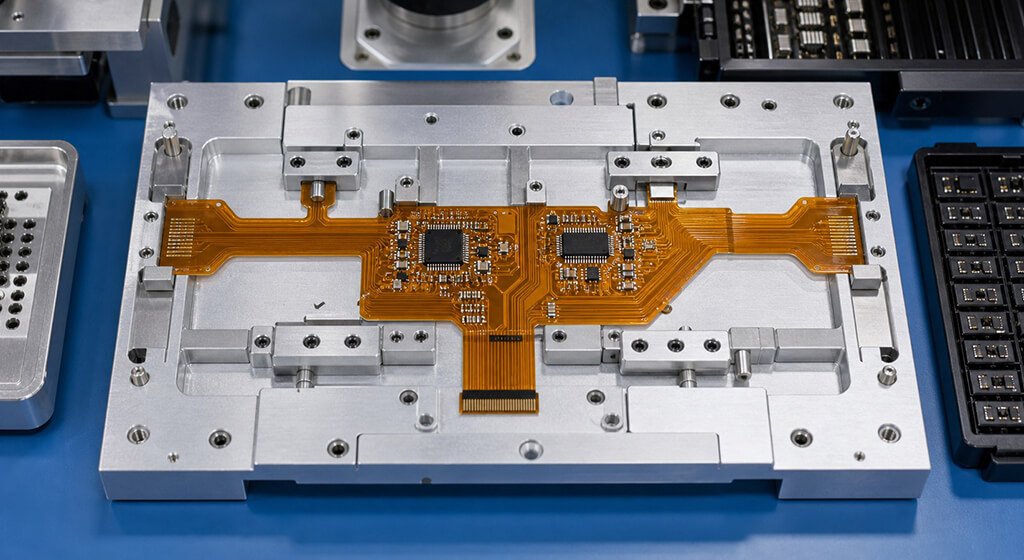

3. Why Does Board Movement Create Printing and Placement Defects?
Your flex circuit can move during printing, placement, and heating because thin polyimide lacks rigid mechanical support. That movement changes pad alignment, solder volume, and component position before your solder joints become mechanically stable.
A dedicated carrier usually supports each critical assembly area without touching exposed circuit surfaces. Your carrier must hold the circuit flat through repeatable loading, heating, cooling, and unloading.
Review tooling holes, vacuum support, fiducial visibility, and adhesive residue near solderable surfaces. Weak support often creates defects across several process stages, rather than one isolated placement error.

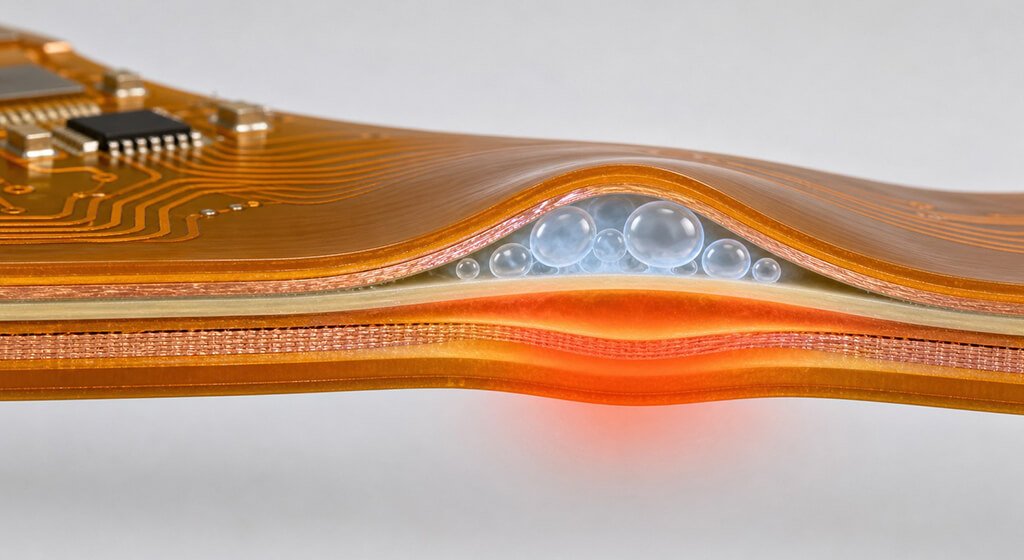

4. How Can Moisture Cause Flex PCB Delamination During Reflow?
Your flexible materials can absorb environmental moisture during shipping, storage, handling, or extended exposure outside protective packaging. During reflow, trapped moisture can become vapor and create pressure between bonded material layers.
IPC-1602A explains that absorbed moisture can cause internal delamination or excessive strain during soldering. Prioritize dry packaging and controlled handling instead of applying one universal baking schedule.
IPC-1602A does not assign standard MSL floor life or universal baking times to every printed board. Your board response changes with thickness, copper distribution, material selection, adhesive system, surface finish, and construction.
Never copy component baking tables from J-STD-033 directly onto bare flex circuits. Unnecessary baking can reduce solderability, increase handling damage, and add avoidable production time.
Define any drying process together with your board supplier, using approved documentation and confirmed solderability requirements.
Review common base films, copper foils, adhesives, and coverlays in this flex PCB materials guide.
5. Why Do Heat and Bending Damage Flex Materials?
Your assembly sees thermal expansion during reflow, then mechanical strain during depaneling, handling, installation, and operation. Repeated strain can weaken copper traces, pad interfaces, solder joints, vias, and stiffener transition areas.
DuPont reports these typical Pyralux AP9121 values under recognized IPC-TM-650 methods; use them as examples, not finished-assembly acceptance limits.
Property | Pyralux AP9121 Typical Value | Why This Value Matters During Troubleshooting |
Moisture Absorption | 0.8% | Connect moisture exposure with possible reflow damage |
Peel Strength After Solder | 1.4 N/mm | Assess copper adhesion after thermal exposure |
Dimensional Stability After Etching | ±0.04% to ±0.08% | Explain printing or placement registration changes |
Dimensional Stability After 200°C For 30 Minutes | ±0.04% to ±0.07% | Evaluate thermal movement during processing |
Solder Float | Pass at 288°C for 10 seconds | Compare materials under one defined laboratory method |
Flexural Endurance | 6,000 cycles | Compare samples tested under the same IPC test method |
Glass Transition Temperature | 220°C | Review material behavior at elevated temperatures |
The DuPont Pyralux AP datasheet lists these values; your results depend on fabrication, stack-up, copper geometry, and assembly conditions.
6. How Should You Troubleshoot Flex PCB Assembly Problems?
Follow a repeatable sequence because random rework can destroy evidence and create new defects. Separate symptoms, process stages, verification methods, corrections, and preventive actions into clear investigation groups.
6.1. What Evidence Should You Record Before Rework?
Record the defect location, production lot, panel position, component reference, and inspection stage. Photograph everything before cleaning, heating, bending, scraping, or removing any component from the assembly.
Compare affected boards against known-good boards from the same lot and another production lot. Save available SPI, AOI, X-ray, reflow, placement, electrical, and functional test records.
Determine whether the defect appeared after reflow, depaneling, connector insertion, housing installation, or reliability testing. That timing often narrows your investigation faster than visual inspection alone and avoids unnecessary destructive checks.
6.2. How Can You Identify the Responsible Process Stage?
Sort possible causes into seven practical groups during your first investigation review.
- Check design and DFM near pads, bends, vias, and stiffener transitions.
- Check materials, storage, surface finish, contamination, and moisture exposure.
- Check solder paste printing, stencil condition, support, and registration.
- Check component placement, pressure, nozzles, fiducials, and coplanarity.
- Check reflow temperature, time, atmosphere, support, and cooling.
- Check manual soldering, cleaning, coating, and previous rework.
- Check installation, bending, connectors, packaging, and handling.
Test the most likely causes first, but allow for interaction between stages. A poor carrier can create paste variation, placement errors, uneven heating, and unstable inspection results.

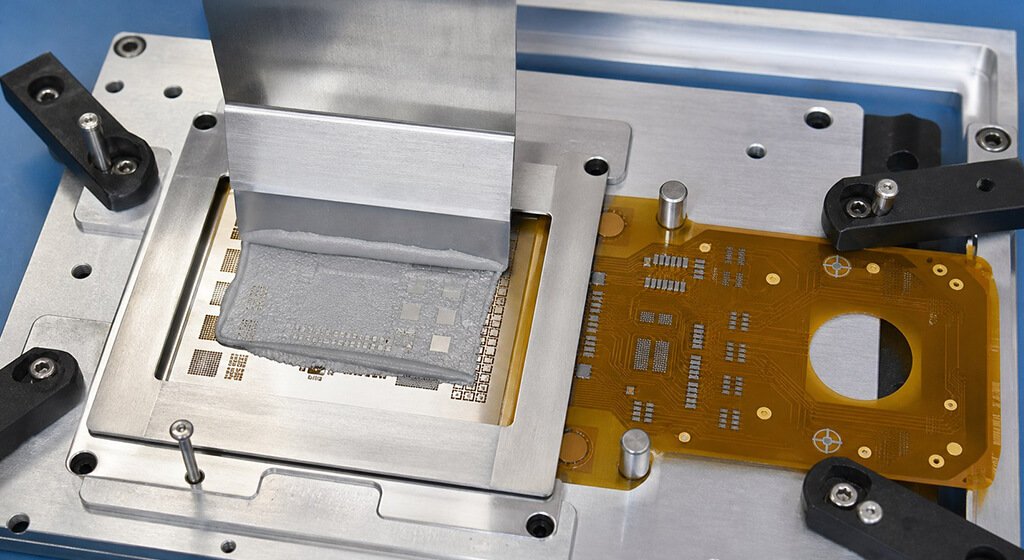

7. How Do You Fix Flex PCB Solder Paste Printing Defects?
Your solder paste print creates the foundation for every later SMT connection. You cannot recover consistent joints through placement or reflow when your paste deposit already varies significantly.
7.1. What Causes Solder Bridging on a Flexible PCB?
Your bridge may begin during printing when an aperture deposits excessive paste between closely spaced pads. Board movement, stencil gaps, poor underside cleaning, damaged apertures, and incorrect alignment can increase this risk.
Inspect printed paste before placement using SPI whenever component density and product risk justify it. Compare volume, height, area, offset, and deposit shape across several panel positions.
The Indium RMA-155 datasheet provides product-specific aperture guidance for controlled process reviews. Indium suggests 10–20% aperture reduction for discrete components and 5–15% area reduction at pitches of 20 mils or finer.
Validate every aperture change against component geometry, paste type, stencil thickness, release efficiency, and acceptance criteria. Never apply those percentages across unrelated products without supporting SPI data and trial results.
7.2. Why Do You Get Insufficient Paste or Open Joints?
Your paste volume can fall when small apertures release poorly, clog, wear, or lose proper contact. Poor support can also create a local stencil gap that leaves irregular or incomplete deposits.
Inspect aperture walls, stencil condition, separation speed, squeegee pressure, paste temperature, and cleaning frequency. Confirm that your flex circuit remains flat under every critical land pattern.
Try another aperture shape, thinner stencil, stepped stencil, improved coating, or stronger local support when measurements justify changes. Base your final choice on transfer efficiency, not nominal aperture dimensions alone.
7.3. Why Does Solder Paste Smear or Shift?
Your paste can smear when the flex circuit moves during separation or contacts the stencil after printing. Excess pressure, poor tooling alignment, warped carriers, or contaminated support surfaces can create repeated registration problems.
Compare paste offset against board fiducials and carrier coordinates across a complete panel. A consistent shift suggests registration error, while random shifts suggest movement or unstable support.
8. Why Do Components Shift, Skew, or Stand Upright?
Your placement process must position each component accurately without bending or stretching the supported flex circuit. Placement defects begin early, while solder movement during reflow can amplify them.
8.1. What Causes Component Misalignment on Flex Boards?
Your components can shift when paste deposits differ, placement coordinates drift, or board support allows local movement. Incorrect nozzle selection, pickup errors, high placement pressure, and weak fiducial recognition can also contribute.
Compare post-placement AOI images against post-reflow images before changing your machine program. Movement before reflow points toward placement; later movement suggests paste, pad, or thermal imbalance.
Confirm that your carrier remains stable across repeated oven cycles and cleaning. A worn carrier can cause component misalignment even when placement coordinates remain unchanged.

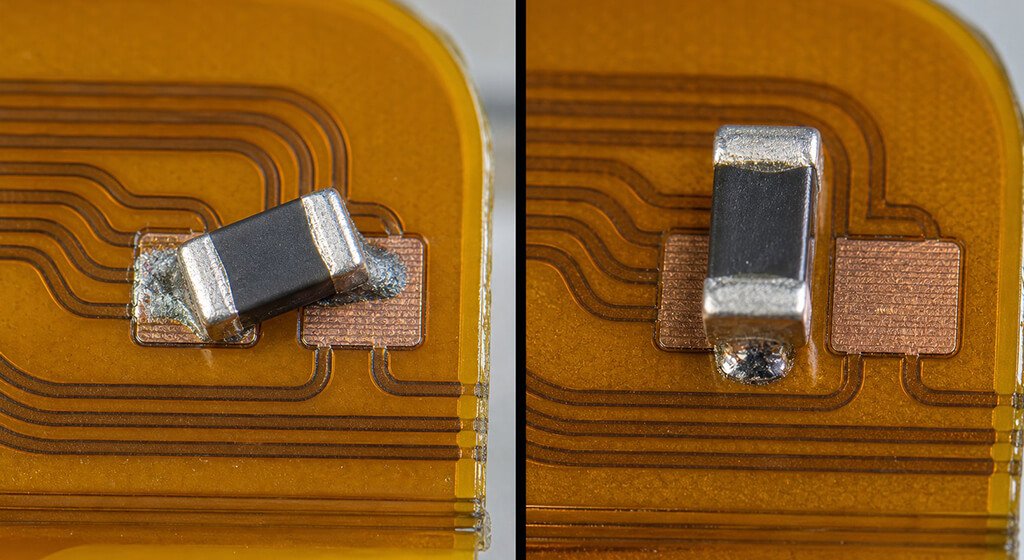

8.2. What Causes Tombstoning During Flex PCB Assembly?
IPC-9111 links tombstoning with unequal melting or unequal solder paste quantity across opposite component ends. Your flex assembly adds another variable because local movement can change contact and heat transfer.
Compare both paste deposits, pad geometry, copper connections, component terminations, and measured temperatures. A controlled soak may improve thermal balance when your paste datasheet supports it.
Review placement pressure and Z-height because excessive force can displace paste unevenly. Correct the measured imbalance using verified printing, placement, or profile changes instead of increasing solder volume.
9. What Causes Flex PCB Reflow Soldering Defects?
Your reflow process must activate flux, melt solder, wet each surface, and cool joints without damaging materials. Profile populated flex assemblies because oven settings alone cannot represent actual product temperature.
9.1. Why Do Cold Joints and Nonwetting Occur?
Your cold joint may result from insufficient thermal input, contaminated surfaces, oxidation, inactive flux, or poor solderability. Nonwetting appears when molten solder cannot form a proper bond across the intended surface.
Inspect surface finish, paste history, storage records, time above liquidus, peak temperature, and atmosphere. Place thermocouples near low-mass and high-mass locations, especially where thermal differences look largest.
Use J-STD-001J for soldering process requirements and IPC-A-610J for final assembly acceptance. Keep process requirements separate from visual acceptance, because appearance alone cannot prove long-term reliability.

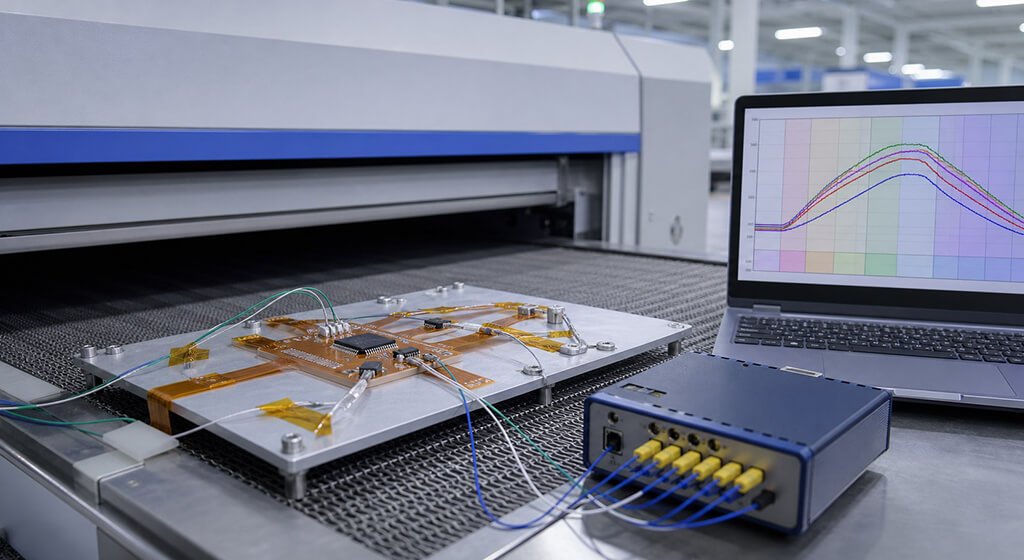

9.2. What Reflow Profile Should You Use?
Start with your solder paste datasheet, then confirm temperatures across a populated, production-representative assembly. Component limits, flex materials, carrier design, copper distribution, and oven capability narrow your process window.
Indium’s RMA-155 SAC305 datasheet provides one product-specific starting window:
Reflow Parameter | Manufacturer-Recommended Range |
Average Ramp Rate From Ambient To Peak | 1.0–1.5°C per second |
Optional Soak Temperature | 140–160°C |
Optional Soak Time | 20–60 seconds |
Time Above Liquidus | 45–60 seconds |
Peak Temperature | 230–260°C |
Cooling Rate | 2–6°C per second |
Reflow Atmosphere | Air or nitrogen |
Review every condition in the Indium RMA-155 product datasheet. Treat this table as a product example, not a universal flex PCB reflow profile.
Measure temperature at actual solder joints instead of relying on oven zone settings. IPC-7530B provides industry guidance for mass-soldering profiles using product thermocouples and recorded process limits.
9.3. Why Do Solder Bridges and Solder Balls Appear After Reflow?
Your printed deposits may look acceptable before placement, yet components can squeeze paste toward neighboring pads. Board movement, excessive placement pressure, rapid heating, paste slump, or contamination can create bridges during reflow.
IPC-9111 links solder balls to aged paste, insufficient preheating, outgassing, or excessive surface oxides. Compare pre-reflow SPI results against post-reflow AOI results before changing stencil apertures.
Inspect paste working time, ambient exposure, warm-up after refrigeration, stencil life, and mixing practices. Expect your correction to involve printing, placement, reflow, storage, or several connected controls.
9.4. Why Do Flex PCB Pads Lift During Reflow or Rework?
Your copper pads depend on adhesion between copper, dielectric film, adhesive, coverlay, and local reinforcement. Excessive heat, long dwell time, repeated heating, or mechanical pulling can weaken this layered structure.
Stop immediately when a pad moves during component removal or lead cleaning. Continued heating can turn a repairable solder defect into permanent conductor and substrate damage.
Inspect the attached trace, remaining adhesion, nearby coverlay, via connections, and underlying thermal damage. Your engineering and quality teams must decide whether a documented repair meets the required reliability class.
9.5. Why Does Flex PCB Delamination Occur During Reflow?
Your flex PCB may delaminate because of moisture, weak lamination, material incompatibility, contamination, or excessive heat. Visible bubbles can appear immediately, while internal separation may require X-ray or destructive microsection analysis.
Quarantine affected material before further heating because another thermal cycle can worsen internal separation. Review packaging, exposure time, storage humidity, lamination records, material certificates, and measured product temperatures.
Use IPC-1602A for printed board handling instead of treating each bare board like an MSL component. Your approved drying plan must protect solderability while addressing the actual board construction.
9.6. Why Does a Flex PCB Warp During Reflow?
Your flex board can warp when copper remains unbalanced, support is incomplete, or temperature varies across the assembly. Adhesives, stiffeners, heavy components, and local copper planes can create different expansion and cooling behavior.
Measure flatness before heating, after fixture loading, after reflow, and after fixture removal. Those four measurements separate incoming shape, fixture stress, thermal warpage, and permanent construction imbalance.
10. How Do You Diagnose Cracked Traces and Intermittent Open Circuits?
Your circuit may pass static testing but fail after folding, vibration, temperature cycling, or product installation. Intermittent opens often need controlled mechanical stimulation while you monitor resistance or functional output continuously.
10.1. Why Do Copper Traces Crack Near Bend Areas?
Your traces can crack when bend radius stays too small, copper strain becomes concentrated, or bending repeats excessively. Vias, sharp corners, stacked traces, neck-down areas, and stiffener edges can increase local strain.
IPC-6013E separates flex circuits intended for installation flexing from circuits intended for continuous flexing. For a continuous-flex design, specify the required cycle count within your procurement documentation.
Avoid publishing one universal bend-radius multiplier because construction and operating conditions affect results. Define radius, bend angle, travel, frequency, copper type, stack-up, temperature, and target life.
10.2. Which Design Features Reduce Cracked Flex Traces?
The Molex FPC engineering guide recommends several methods for reducing mechanical stress. Evaluate each method against your electrical, impedance, shielding, and packaging requirements before changing the circuit design.
Mechanical Risk | Design Practice You Should Consider |
Cracking near pad transitions | Add smooth fillets between pads and conductors |
Fracture near sharp trace corners | Use soft curves instead of abrupt direction changes |
High strain across bend areas | Route conductors perpendicular to the bend where practical |
Tear growth near internal corners | Use radiused cut lines and suitable tear stops |
Breakage near stiffener edges | Add controlled strain relief near rigid transitions |
Repetitive motion damage | Add service loops that distribute strain |
Stacked-trace I-beam behavior | Stagger traces across adjacent flexible layers |
Excess stiffness from solid planes | Consider cross-hatched planes where electrical performance allows |
Uneven conductor stress | Use a symmetrical conductor distribution where practical |
Review available constructions, stiffeners, finishes, and fabrication capabilities on the PCBSAIL Flex PCB page
10.3. How Can You Find an Intermittent Open?
First reproduce the failure without causing more damage, then monitor resistance under a controlled radius, angle, direction, and movement rate.
Never bend the board randomly with your fingers because uncontrolled strain can create another crack. A defined fixture gives you repeatable evidence and meaningful comparisons against known-good samples.
Use microscopy, four-wire resistance measurements, time-domain methods, thermal imaging, or microsection analysis where appropriate. Match your method to conductor size, accessibility, failure duration, and available equipment.

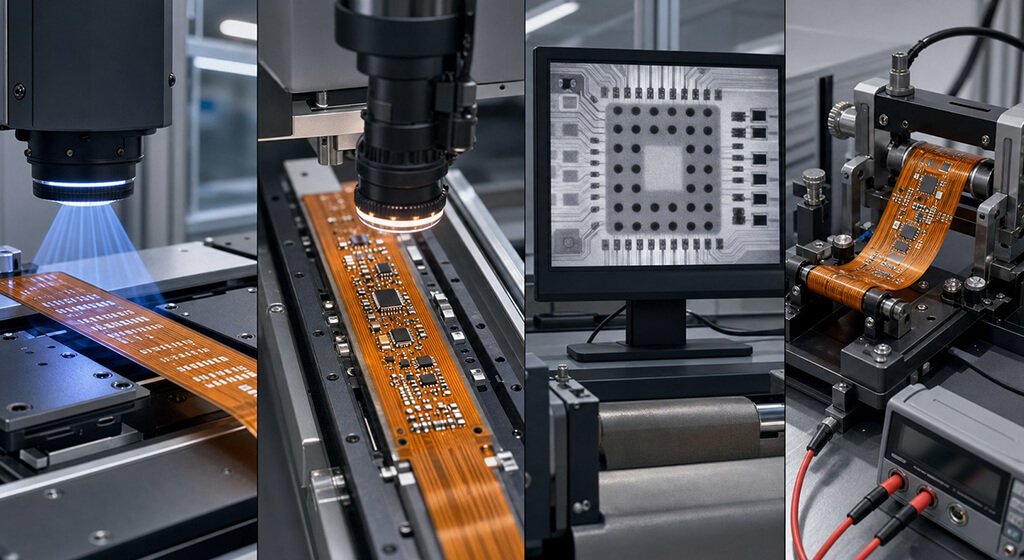

11. Which Inspection Method Should You Use?
Choose inspection equipment after defining the suspected defect and its physical location. No single method can identify every flex PCB assembly failure reliably under all operating conditions.
Inspection Method | What You Can Detect | Best Inspection Stage | Main Limitation |
SPI | Paste volume, height, area, shape, and offset | After solder paste printing | You cannot assess finished solder joints |
AOI | Bridges, missing parts, polarity, and visible misalignment | After placement or reflow | You may miss hidden connections |
X-ray | Hidden opens, bridges, voids, and package alignment | After reflow | You need skilled image interpretation |
Electrical test | Opens, shorts, and continuity failures | Bare board or final assembly | You may miss intermittent mechanical faults |
Functional test | Product behavior under defined operating conditions | Final assembly | You may not isolate the physical cause |
Controlled flex test | Intermittent opens linked with bending | Failure analysis | You must control bend radius and movement |
Microsection | Internal cracks, interfaces, plating, and delamination | Detailed failure analysis | The test destroys your sample |
Use current IPC-TM-650 test methods when your laboratory needs repeatable evidence during formal failure analysis. Relevant methods cover flexural endurance, peel strength, moisture absorption, solder float, and convection reflow simulation.
Use SPI for paste variation, AOI for visible defects, and X-ray for hidden connections. Add electrical and functional testing whenever visual evidence cannot confirm circuit performance.
For related placement, reflow, and inspection capabilities, review PCBSAIL’s SMT assembly service page.
12. When Can You Rework a Flex PCB, and When Should You Scrap It?
Your rework decision must consider defect type, material damage, reliability class, application risk, and thermal history. Never assume a cleaner-looking joint has recovered its original mechanical reliability after rework and final inspection.

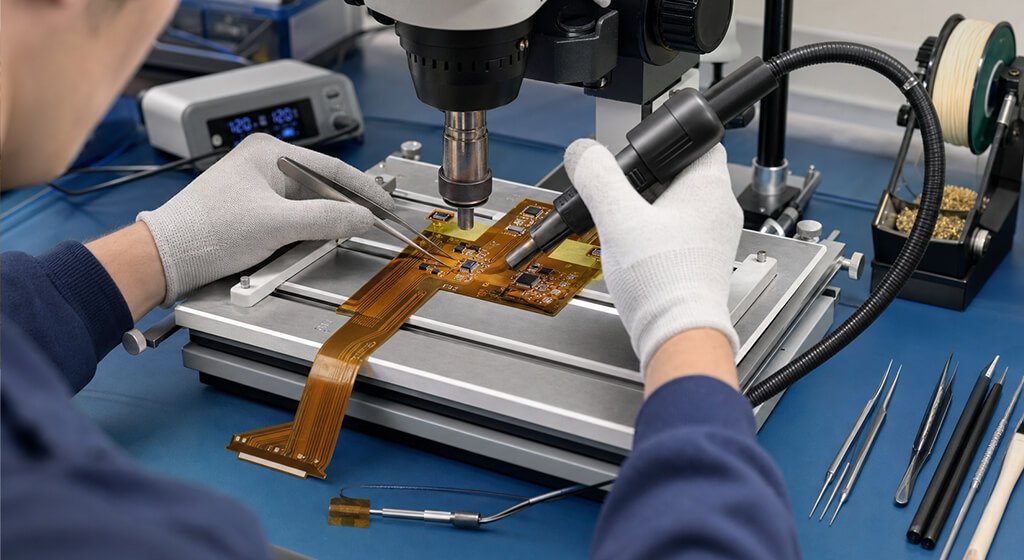

12.1. Which Defects May Support Controlled Rework?
You may rework a limited bridge, accessible cold joint, replaceable component, or local paste defect. First confirm sound pads, traces, coverlay, substrate, nearby components, and adequate tool access.
Use temperature-controlled tools, local support, suitable flux, shielding, magnification, and documented inspection steps. Minimize dwell time and force while protecting unsupported flexible areas from bending.
IPC-7711/21D provides recognized rework, modification, and repair procedures across many electronic assembly technologies. Apply those procedures alongside approved product documentation, customer acceptance requirements, and defined reliability targets.
12.2. Which Conditions Should Stop Rework?
Stop when you see severe delamination, carbonization, torn dielectric, widespread pad lifting, or inaccessible conductor damage. Also stop when another thermal cycle would exceed approved limits or weaken nearby structures.
Dynamic bend-area cracks deserve special caution because local repair can create another stress concentration. High-reliability medical, automotive, aerospace, or safety products may require stricter disposition rules than standard commercial assemblies.
Your authorized review team should document every repair, use-as-is, return, or scrap decision. Keep defect images, process history, verification results, and final disposition linked to the production lot.
13. How Can You Prevent Flex PCB Assembly Defects Before Production?
You can prevent more defects during design and process planning than during final inspection. Connect DFM, material handling, tooling, printing, placement, profiling, testing, and installation through one documented control plan.
13.1. What Should Your Flex PCB DFM Review Include?
Define static or dynamic use, minimum bend radius, flex direction, and expected operating cycles. Mark component zones, bend zones, stiffener areas, connector interfaces, and installation paths.
Keep vias, pads, large components, and abrupt trace changes away from dynamic bend regions. Review coverlay openings, pad support, copper balance, trace transitions, tooling holes, and panel handling features.
Share expected mechanical use with your fabricator before tooling starts, especially for dynamic applications.
PCBSAIL’s turnkey PCBA service includes DFM, DFA, sourcing, assembly, and testing support.
13.2. What Should You Control Before Printing?
Inspect packaging, moisture exposure, surface condition, dimensions, flatness, tooling holes, and electrical test status. Verify carrier cleanliness, alignment, vacuum performance, and release before loading production panels.
Condition solder paste according to its datasheet, then record opening time, working time, and environmental conditions. Confirm stencil identity, aperture condition, underside cleaning, squeegee setup, and first-article SPI results.
13.3. What Should You Control During Placement and Reflow?
Verify fiducials, placement coordinates, nozzle selection, pickup performance, pressure, Z-height, and post-placement alignment. Monitor carrier wear because repeated heating and cleaning can change flatness or locating accuracy.
Profile production-representative assemblies using thermocouples near thermal extremes on actual solder joints. Record ramp, soak, time above liquidus, peak temperature, cooling, and differences across critical joints.
13.4. What Should You Check After Reflow?
Inspect visible joints, component position, polarity, flex surfaces, stiffener transitions, and signs of delamination. Use X-ray wherever packages hide critical connections or visual inspection remains insufficient.
Complete electrical and functional testing before controlled bending, packaging, or final product installation begins. Protect assemblies from sharp folds, unsupported lifting, connector misuse, contamination, and packaging pressure.
14. Which Standards Should Support Your Troubleshooting Process?
Select standards through your contract, product class, industry, customer requirements, and reliability targets.
Standard | How You Can Use It |
IPC-2223E | Review flexible and rigid-flex design requirements |
IPC-6013E | Define flex board qualification, performance, and installation usage |
IPC-1602A | Control printed board packaging, storage, handling, and moisture exposure |
IPC-9111 | Connect assembly defects to likely design, material, and process causes |
J-STD-001J | Define soldering materials and process requirements |
IPC-A-610J | Evaluate completed electronic assembly workmanship |
IPC-7711/21D | Plan controlled rework, modification, and repair |
IPC-7530B | Develop and verify mass-soldering temperature profiles |
IPC-TM-650 | Select repeatable laboratory test methods |
Verify the required revision before production because contracts may specify an earlier revision or addendum. Avoid reproducing copyrighted acceptance images or tables inside your article without proper publication rights.
15. FAQ About Flex PCB Assembly Troubleshooting?
What Are the Most Common Flex PCB Assembly Defects?
You will commonly see solder bridges, cold joints, insufficient solder, component misalignment, tombstoning, lifted pads, warpage, and delamination. Other failures include cracked traces, intermittent opens, damaged stiffener transitions, and hidden BGA or QFN defects.
Why Does a Flex PCB Delaminate During Reflow?
Your flex PCB can delaminate when moisture, weak adhesion, contamination, or excessive thermal stress separates bonded layers. Review storage exposure, construction, lamination quality, drying controls, and measured temperatures before rework.
Does Every Flex PCB Need Baking Before Assembly?
No, you should not apply one automatic baking rule across every flex PCB construction. IPC-1602A prioritizes dry handling controls and explains why printed boards do not share one universal floor-life schedule.
How Can You Prevent Component Movement During Reflow?
Stabilize your circuit using a suitable carrier, accurate tooling, consistent paste deposits, and controlled placement pressure. Verify pad geometry, board flatness, heating balance, and fixture stability across repeated oven cycles.
What Causes Solder Bridging on Flex PCBs?
Your solder bridge can result from excess paste, poor registration, stencil gaps, paste slump, placement pressure, or board movement. Compare SPI and AOI results before changing stencil apertures or reflow settings.
How Can You Detect a Broken Trace in a Flex PCB?
Monitor continuity or resistance while applying a controlled bend radius, angle, direction, and travel. Use a repeatable fixture because random hand bending can create damage and misleading results.
Can You Repair a Lifted Pad on a Flex PCB?
You may repair limited damage when approved procedures, remaining adhesion, conductor access, and product requirements justify it. Scrap or escalate severe lifting, torn substrates, dynamic-area damage, or repeated thermal exposure.
16. How Can You Build More Reliable Flex PCB Assemblies?
You can solve flex PCB assembly defects faster when you separate symptoms, causes, verification, correction, and prevention. Preserve evidence, reproduce the failure, measure relevant conditions, and challenge unsupported assumptions.
Connect assembly controls to mechanical use because your product remains flexible after soldering. Reliable results need sound design, controlled materials, stable tooling, verified printing, measured reflow, and suitable testing.
If you face recurring soldering, delamination, placement, or intermittent circuit problems, you can request an engineering review.
Send your Gerber files, BOM, placement data, assembly drawings, defect images, and test evidence through PCBSAIL’s Flex PCB assembly page.
