Medical Device PCB
PCBSAIL is a professional Medical Device PCB and PCBA manufacturer. We are dedicated to delivering high-reliability electronic solutions for medical and healthcare industries.
We understand that precision is non-negotiable and reliability is life-critical in the medical field. That’s why our Medical Device PCB is built under rigorous process control, traceability systems, and compliance-driven manufacturing workflows.
With years of engineering expertise, advanced production facilities, and a strict quality management system, we support global medical device companies from PCB prototype to full-scale production.

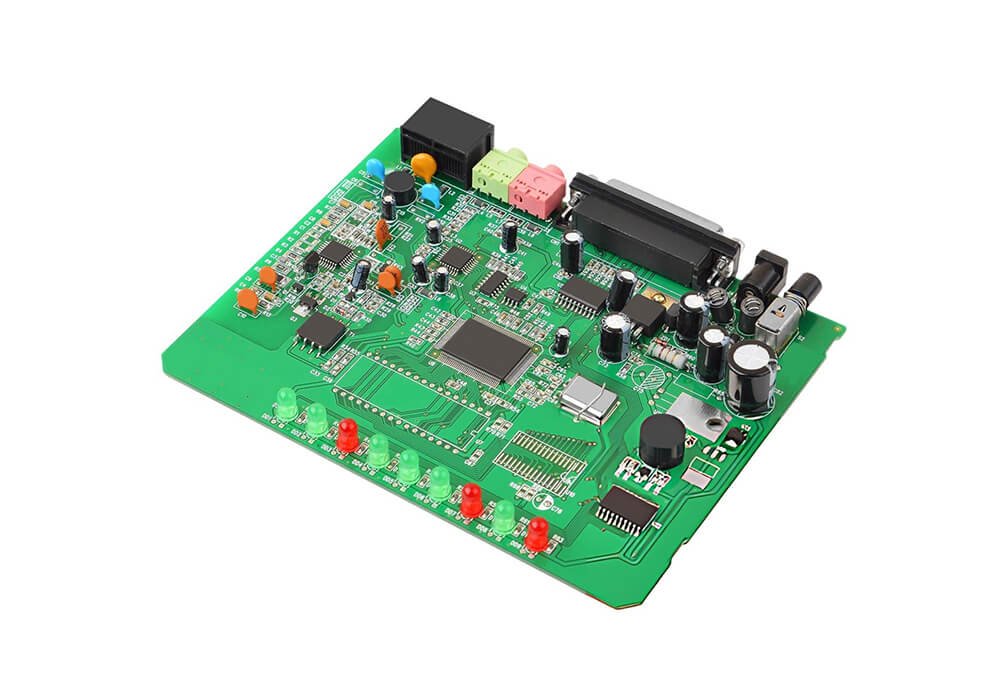

What Is Medical Device PCB?
A Medical Device PCB is a specialized Circuit Board used in the design, control, and operation of medical equipment.
These PCBs serve as the backbone of modern healthcare electronics. It can enable accurate diagnostics, patient monitoring, imaging systems, and life-support technologies.
Medical Device PCBs integrate advanced electronic components such as:
- Microcontrollers and processors
- Sensors and biosignal acquisition modules
- Communication modules (Bluetooth, Wi-Fi, IoT)
- Analog and digital signal processing circuits
- Power management systems
These boards ensure that medical devices can deliver accurate readings, and real-time data processings, while maintaining patient safety.

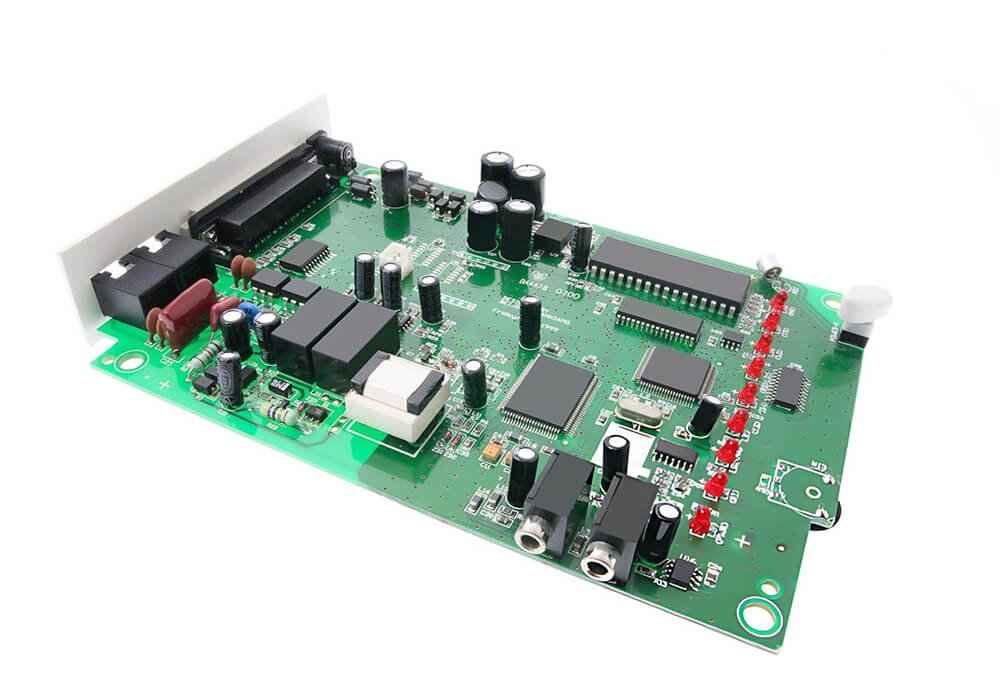

Medical Device PCB We Offered.
We provide a comprehensive of Medical Device PCBs to meet the diverse requirements from monitoring tools to life-critical systems. Each PCB type is optimized for reliability, miniaturization, and compliance with stringent medical standards.
Our Capacity.
Single-Sided Medical Device PCB
Single-sided PCBs were equipped with one conductive copper layer on a single side of the substrate.
- Simple structure and cost-effective
- Easy manufacturing and assembly
- High reliability for basic circuits
Double-Sided Medical Device PCB
Double-sided PCBs had conductive layers on both sides of the board, allowing for more complex circuit design and higher component density.
- Improved routing flexibility
- Higher component density than single-layer boards
- Through-hole vias enable interconnection between layers
Multilayer Medical Device PCB
Multilayer PCBs consist of three or more conductive layers stacked together, enabling highly complex and high-performance circuit designs.
- High circuit density and compact design
- Superior signal integrity and EMI control
- Supports high-speed and high-frequency signals
Flexible Medical Device PCB
Flexible PCBs are made from bendable materials such as polyimide, allowing them to conform to different shapes.
- Lightweight and compact
- Bendable and foldable design
- Reduced need for connectors and cables
Rigid-Flex Medical Device PCB
Rigid-flex PCBs is composed of rigid and flexible substrates into a single integrated structure.
- Combines durability and flexibility
- Reduces interconnect failures
- Saves space and weight
Item | Rigid PCB | Flexible PCB | Rigid-Flex PCB |
Max Layer | 60L | 8L | 36L |
Inner Layer Min Trace/Space | 3/3mil | 3/3mil | 3/3mil |
Out Layer Min Trace/Space | 3/3mil | 3.5/4mil | 3.5/4mil |
Inner Layer Max Copper | 6oz | 2oz | 6oz |
Out Layer Max Copper | 6oz | 20z | 3oz |
Min Mead hanical Driling | 0.15mm | 0.1mm | 0.15mm |
Min Laser Drilling | 0.1mm | 0.1mm | 0.1mm |
Max Aspect Ratio (Mechanical Drilling) | 20:01 | 10:01 | 12:01 |
Max Aspect Ratio (Laser Drilling) | 1:01 | / | 1:01 |
Press Fit Hole Tolerance | ±0.05mm | ±0.05mm | ±0.05mm |
PTH Tolerance | ±0.075mm | ±0.075mm | ±0.075mm |
NPTH Tolerance | ±0.05mm | ±0.05mm | ±0.05mm |
Countersink Tolerance | ±0.15mm | ±0.15mm | ±0.15mm |
Board Thickness | 0.4-8mm | 0.1-0.5mm | 0.4-3mm |
Board Thickness Tolerance(<1.0mm) | ±0.1mm | ±0.05mm | ±0.1mm |
Board Thickness Tolerance(≥1.0mm) | ±10% | / | ±10% |
Min Board Size | 10*10mm | 5*10mm | 10*10mm |
Max Board Size | 22.5*30 inch | 9*14 inch | 22.5*30 inch |
Contour Tolerance | ±0.1mm | ±0.05mm | ±0.1mm |
Min BGA | 7mil | 7mil | 7mil |
Min SMT | 7*10mil | 7*10mil | 7*10mil |
Min Solder Mask Clearance | 1.5mil | 3mil | 1.5mil |
Min Solder Mask Dam | 3mil | 8mil | 3mil |
Min Legend Width/Height | 4/23mil | 4/23mil | 4/23mil |
Strain Fillet Width | / | 1.5±0.5mm | 1.5±0.5mm |
Bow &Twist | 0.003 | / | 0.0005 |
Standards for Medical Device PCB.
Our Medical Device PCBs comply with international standards and regulatory requirements to ensure patient safety and device reliability.
ISO 13485:2016
ISO 13485 is the most important standard for medical device manufacturing.
IEC 60601-1
IEC 60601-1 defines the general safety requirements for medical electrical equipment.
FDA
Medical devices must comply with FDA standards in the United States.
IPC Standards
IPC standards define the acceptability, performance, and reliability criteria for PCBs and assemblies.

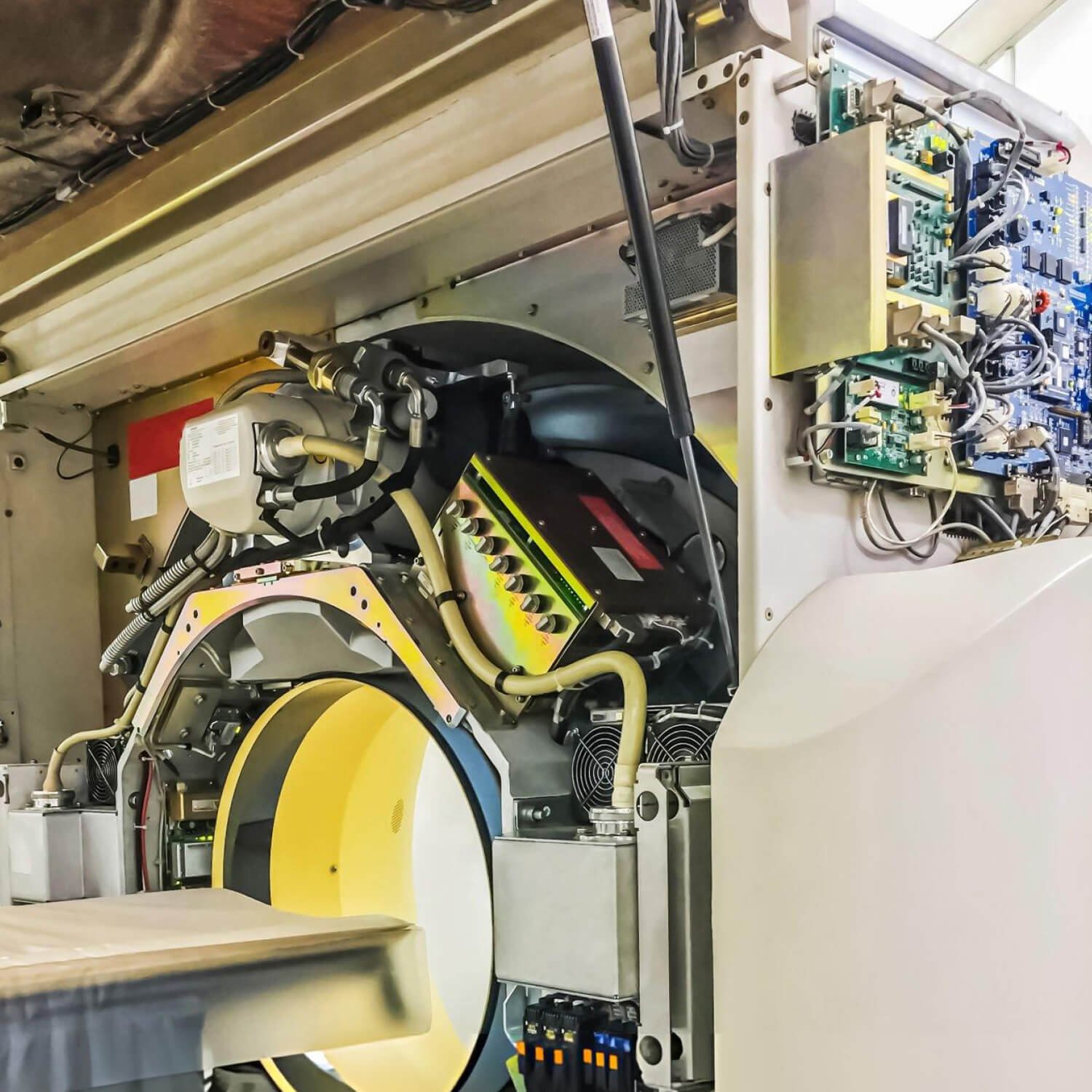

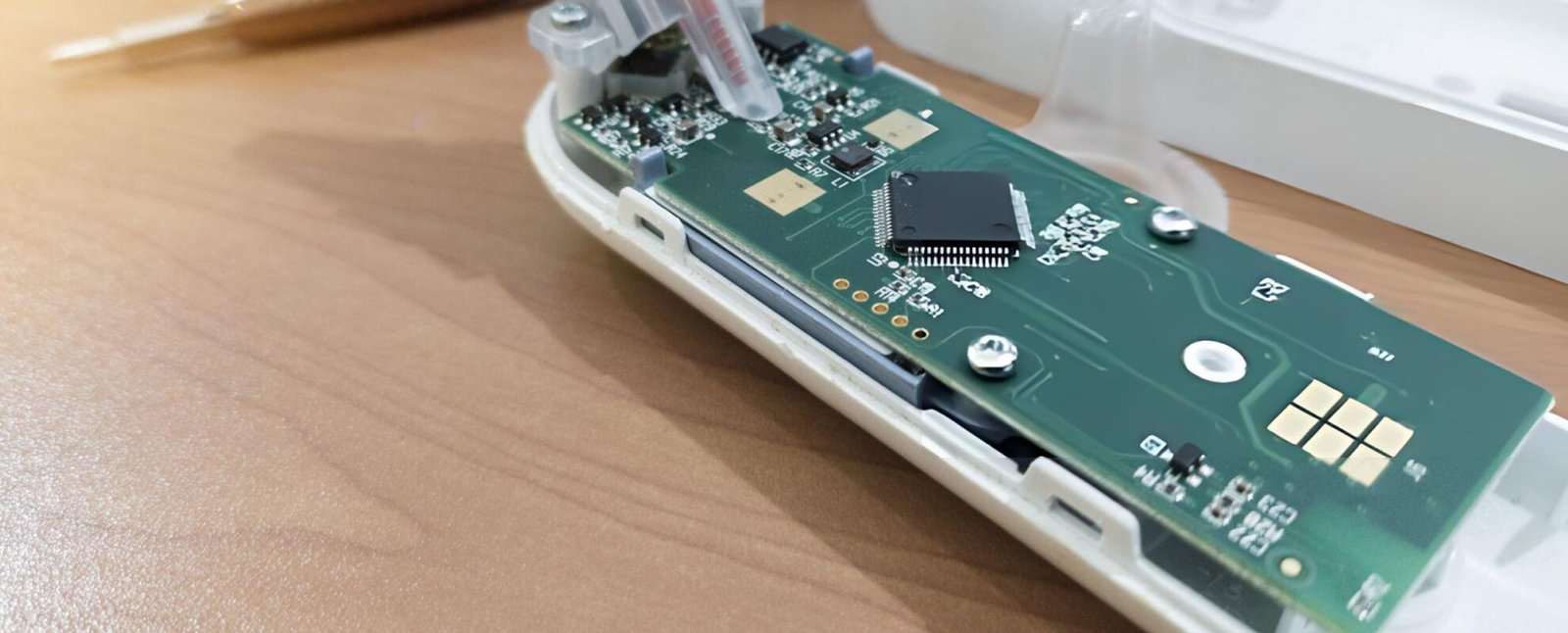

Medical Device PCB Feature
From life-critical systems to wearable medical devices, our Medical Device PCBs are designed with a strong focus on reliability, precision, safety, and long-term performance.
Ultra-High Reliability
Medical devices cannot tolerate failure. Our PCBs are built to deliver consistent and stable performance under continuous operation (24/7).
- Designed to IPC Class 3 standards
- Low defect rates with strict process control
- Redundant design support for critical circuits
- Long lifecycle performance
High Precision & Signal Integrity
Accurate diagnostics depend on precise signal processing. Our Medical Device PCBs are optimized for low noise, high signal fidelity, and stable data transmission.
- Controlled impedance routing (±10% tolerance or better)
- Optimized layer stack-up design
- EMI/EMC mitigation techniques
Low signal loss materials
Miniaturization & High-Density
We support cutting-edge miniaturization technologies to meet the growing demand for compact and portable medical devices.
- Smaller device footprint
- Lightweight designs
- Enhanced device portability
Thermal Management
Medical devices often run under high power or continuous usage conditions. Our PCBs are designed to efficiently manage heat.
- Improved device stability
- Extended component lifespan
- Reduced risk of overheating failures
Sterilization & Chemical Resistance
Medical equipment often undergoes sterilization processes. Our PCBs are designed to withstand harsh environments.
Compatible With:
- Autoclave sterilization
- Chemical disinfection processes

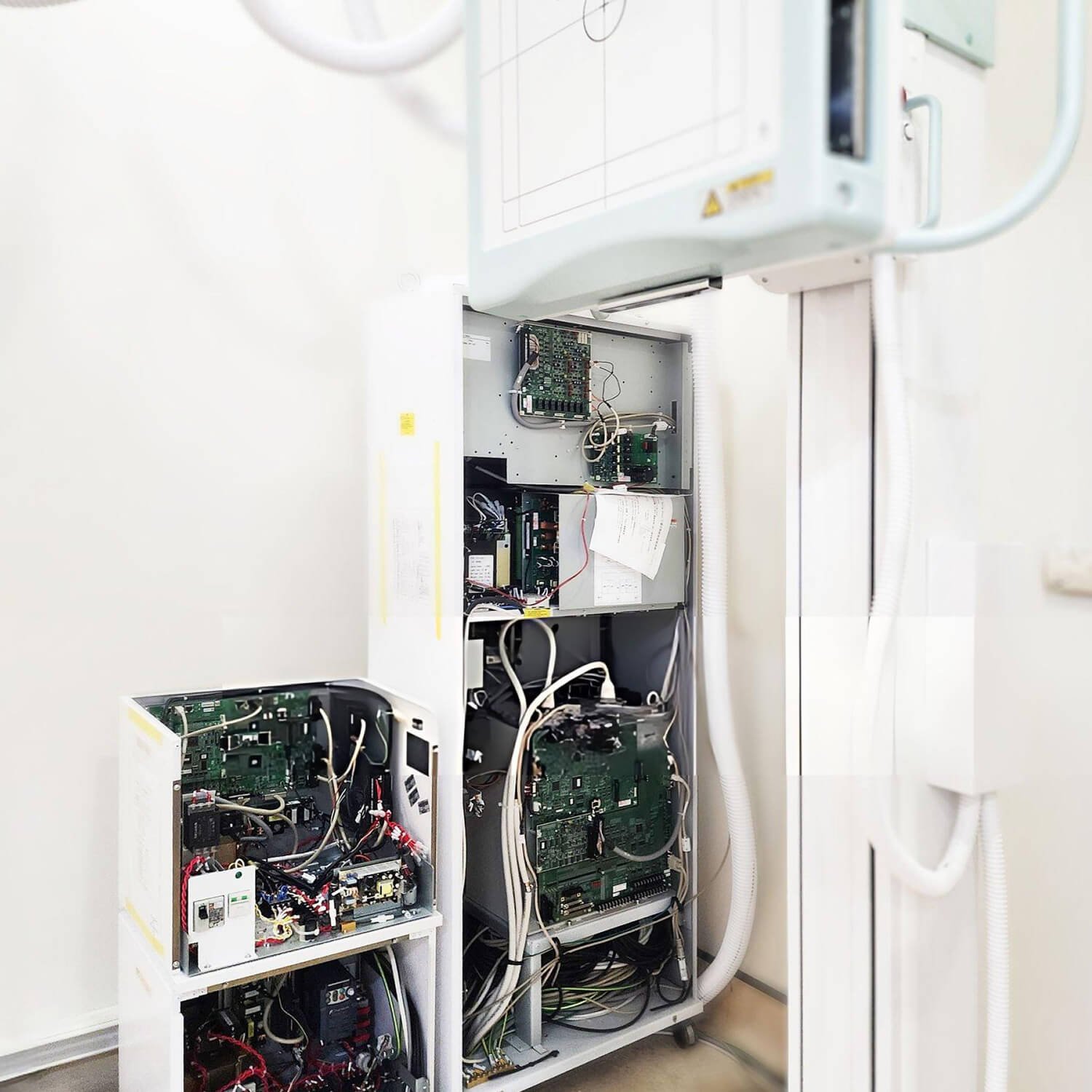

Design for Medical Device PCB
Medical Device PCB’s design is more rigor than standard electronics design. We approach Medical PCB design with a system-level engineering mindset, ensuring that the board performs flawlessly within the complete medical device ecosystem.
1. Regulatory Compliance
Compliance must be embedded at the earliest design stage to avoid costly redesigns and certification delays.
We Need To Focus:
- Documentation and traceability planning
- Risk management integration (ISO 14971)
- Design verification and validation (V&V)
2. Material Selection
Material will directly impact electrical performance, thermal stability, and biocompatibility.
We Should Consider:
- Biocompatibility (for wearable/implantable devices)
- Moisture absorption resistance
- Thermal expansion (CTE matching)
3. High-Density & Miniaturization
Modern medical devices demand compact and lightweight designs.
HDI Design Is Considered:
- Microvias (laser-drilled)
- Fine trace/space (≤3 mil)
- Blind and buried vias
- Sequential lamination
.
4. Signal Integrity & Noise Control
Accurate medical data depends on clean signal transmission.
We Should Use:
- Controlled impedance routing
- Differential pair routing
- Proper grounding and shielding
- Separation of analog and digital signals
5. Thermal Management
Medical devices often run continuously. It will generate heat. It must be managed effectively.
Thermal Design Techniques:
- Thermal vias under heat-generating components
- Copper pours and heat spreading layers
- Heat sinks and thermal interface materials
- Metal-core PCB options
6. Power Management & Stability
Reliable power delivery is very important for medical devices.
We Should Consider:
- Stable voltage regulation
- Power integrity design (low ripple, low noise)
- Battery optimization for portable devices
- Redundant power paths (for critical systems)
7. Safety & Isolation Design
Patient safety is the highest priority in medical electronics.
Safety Design Elements:
- Electrical isolation (isolation barriers)
- Creepage and clearance distances
- Protection circuits (overcurrent, overvoltage)
- Grounding strategies for patient-connected devices
Why Choose Us
We offer strong manufacturing and assembly capabilities to meet the requirements of medical device electronics.
Turnkey PCB Solution
We provide a complete end-to-end service, eliminating the complexity of managing multiple vendors. We can do:
- PCB design and engineering support
- PCB fabrication Component sourcing
- PCB assembly (SMT, THT, mixed)
- Final testing and quality assurance
Quality
We adhere to globally recognized standards:
- IPC-A-610 Class 3 (high-reliability electronics)
- IPC-6012 (PCB performance standards)
- ISO 9001
- ISO 14001
- UL 94
Advanced Manufacturing
Our state-of-the-art facilities support complex and high-precision PCB assembly. We can do:
- Fine-pitch placement down to 0.38mm
- BGA (0.2mm pitch) with X-ray inspection
- Support for 0201 components
- High-density multilayer PCBs
- Mixed technology assembly (SMT + Through-hole)
Testing & Inspection
We implement multi-level testing to ensure every PCBA meets strict performance requirements.
- AOI (Automated Optical Inspection)
- X-ray inspection for hidden solder joints
- In-Circuit Testing (ICT)
- Functional testing under real operating conditions
- Voltage and performance validation
Fast Quotation
Our professional sales and engineering teams provide fast PCB quotes and technical support. Simply send us your Gerber files, BOM, and assembly drawings, and we will respond promptly with a competitive solution.
- Gushu Tangxi Second Industrial Zone, Shenzhen
- +86 755 2335 0814
- +86 135 1078 8094
- sales@pcbasail.com
FAQ About Medical Device PCB?
1. What is a Medical Device PCB?
A Medical Device PCB is a circuit board specifically designed for medical equipment such as diagnostic systems, monitoring devices, and life-support machines.
These PCBs must meet strict standards for safety, precision, and durability.
2. What Materials Are Used In Medical Device PCBs?
Common materials include:
- FR-4 (standard and high-Tg)
- Polyimide (for flexible circuits)
- Rogers and other low-loss laminates
- Ceramic substrates (for high reliability and thermal performance)
3. Can You Support Both Prototyping And Mass Production?
Yes. We support:
- Rapid prototyping (as fast as 24–72 hours)
- Small batch production for testing and validation
- High-volume manufacturing with consistent quality
4. What Is The Typical Lead Time For Medical Device PCBs?
Lead time depends on complexity:
- Prototype PCB: 24–72 hours
- Standard production: 5–15 working days
- PCBA (assembly): 1–3 weeks
We also offer expedited services for urgent projects.
5. What Testing Methods Are Used To Ensure Quality?
We implement multiple inspection and testing processes:
- AOI (Automated Optical Inspection)
- X-ray inspection (for BGA components)
- Flying probe testing
- In-circuit testing (ICT)
- Functional testing
These ensure that every PCB meets strict quality and reliability requirements.
6. Are Your PCBs Suitable For Wearable Medical Devices?
Yes. We specialize in PCBs for wearable devices with:
- Flexible and rigid-flex designs
- Lightweight and compact structures
- Low power consumption optimization
7. Do Medical Device PCBs Require Special Surface Finishes?
Yes, common finishes include:
- ENIG (for high reliability and flatness)
- Immersion silver or tin
- Hard gold for connectors
8. Can You Help Optimize My PCB Design?
Absolutely. Our engineering team provides:
- DFM (Design for Manufacturability) analysis
- DFA (Design for Assembly) support
- Material and stack-up recommendations
- Signal integrity and thermal optimization
