Through-Hole PCB Assembly.

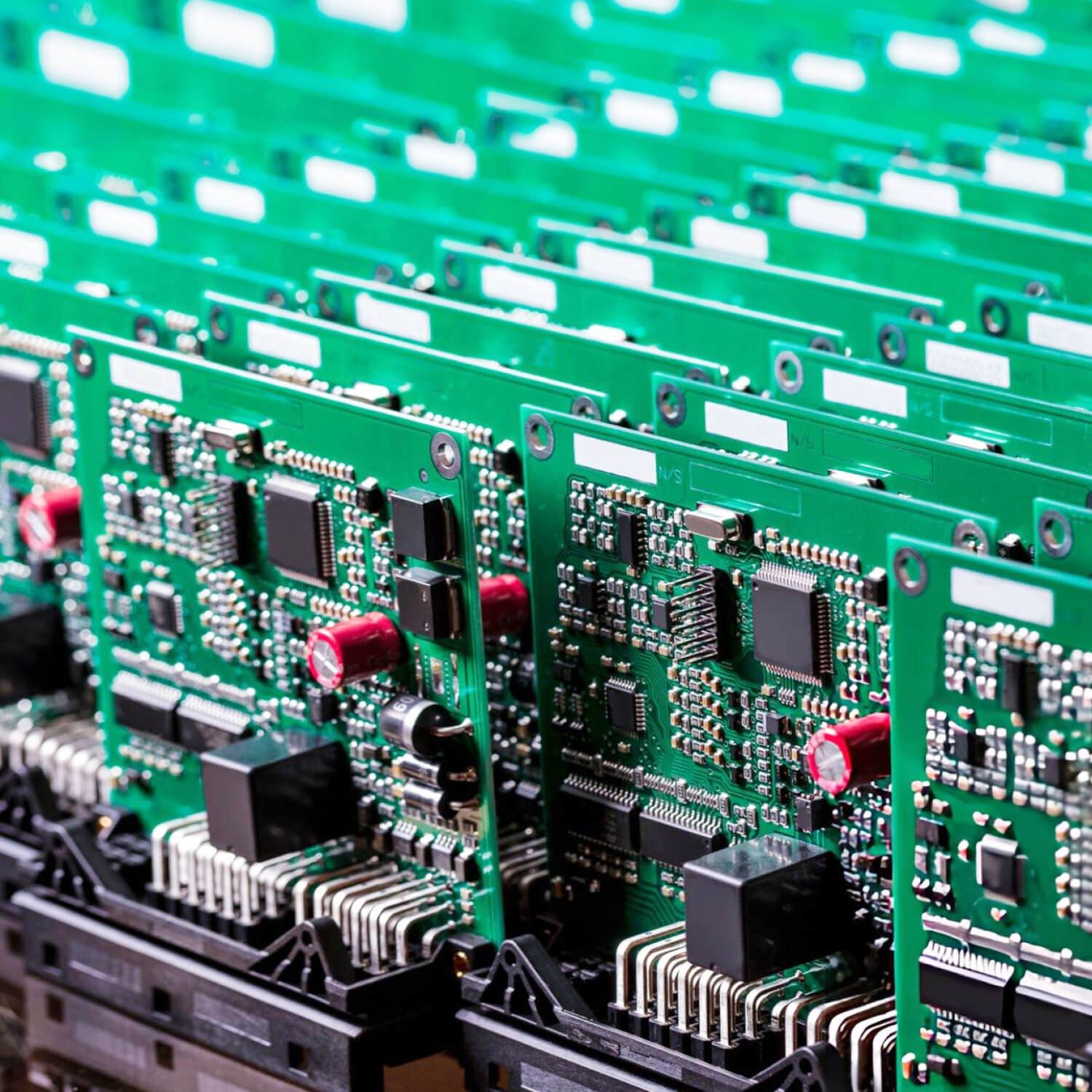

PCBSAIL provides through-hole PCB assembly for engineering prototypes, pilot builds, and repeat production. We coordinate leaded-component insertion, soldering, mixed SMT and THT, sourcing, inspection, testing, and final delivery according to the approved build package.

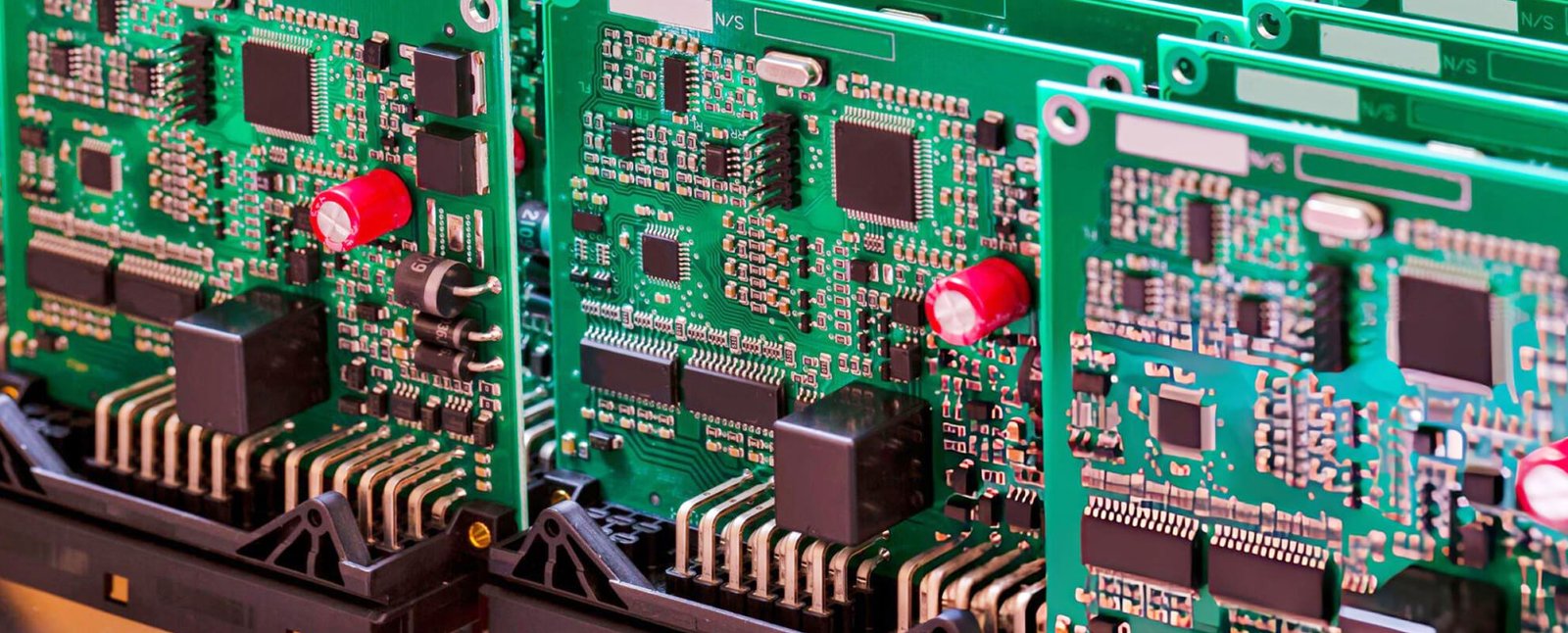

Our THT (Through-Hole Technology) assembly are widely used in industry, where circuits must withstand vibration, thermal stress, high voltage, and harsh environmental conditions.
Through-hole &Mixed Assembly
Manual, Wave, & Selective Soldering
What Is Through-Hole PCB Assembly?

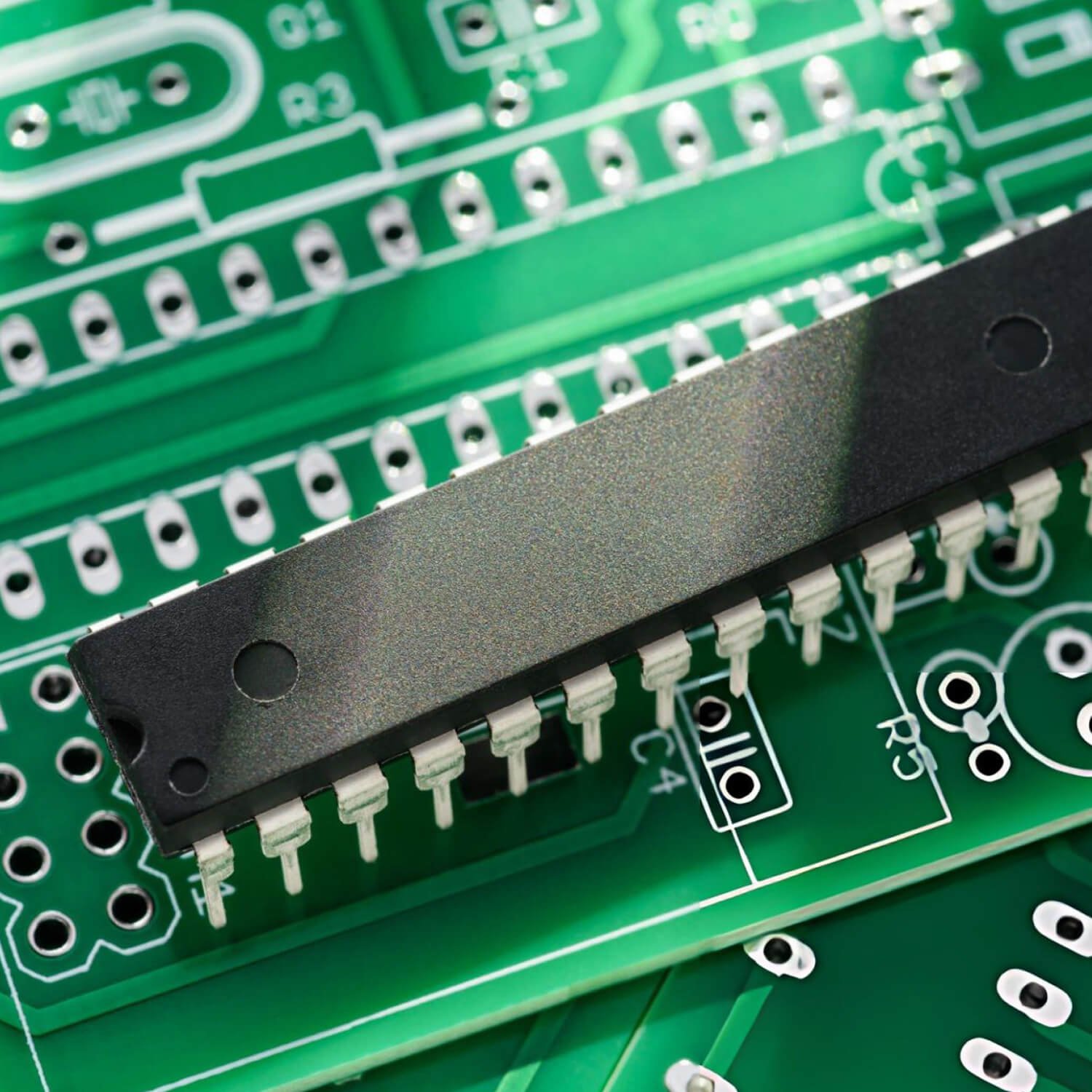

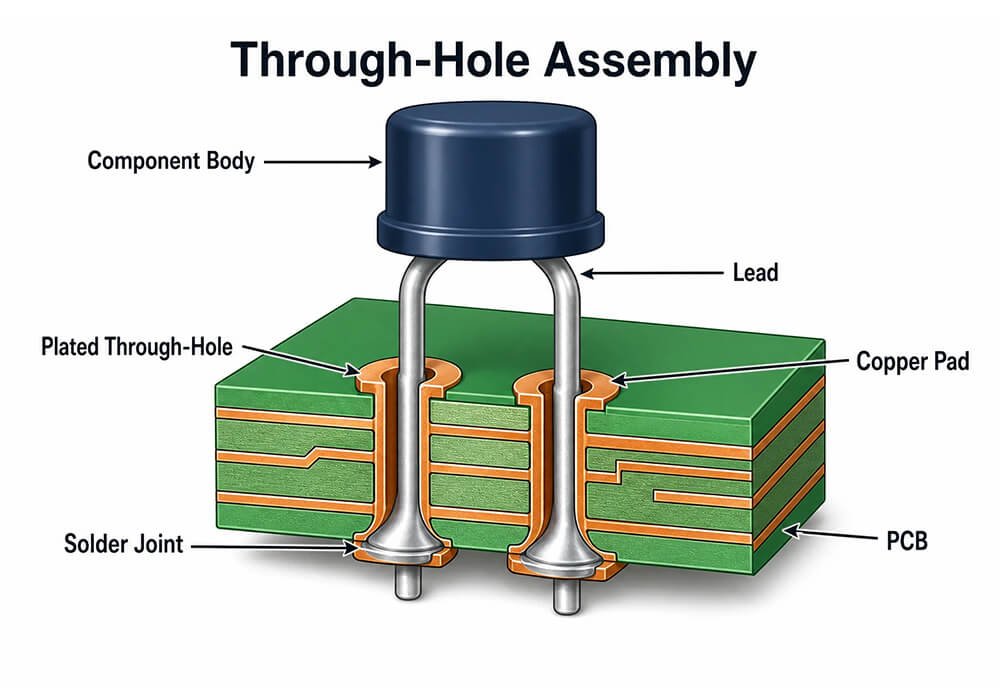

Through-hole PCB assembly mounts components by inserting their leads through plated holes in a pcb board. The leads are soldered or connected on the opposite side. It is commonly used for transformers, relays, switches, and other parts that need leaded packaging or additional mechanical support.
THT does not simply replace surface-mount technology. SMT was commonly used for compact control circuitry and THT for power, connection, or electromechanical components.
We deliver high-quality PCB assembly solutions with experienced engineering teams and advanced equipment.
Choosing the Right PCB Assembly Process.
The assembly method is depends by your components, board layout, and so on. Both SMT and through-hole assembly are used together.

Through-Hole Assembly
Through-hole assembly is often used for connectors, terminals, transformers, relays, and large capacitors that need firm mechanical support. Before assembly, we check that the leads fit the plated holes and that there is enough access for soldering and inspection.

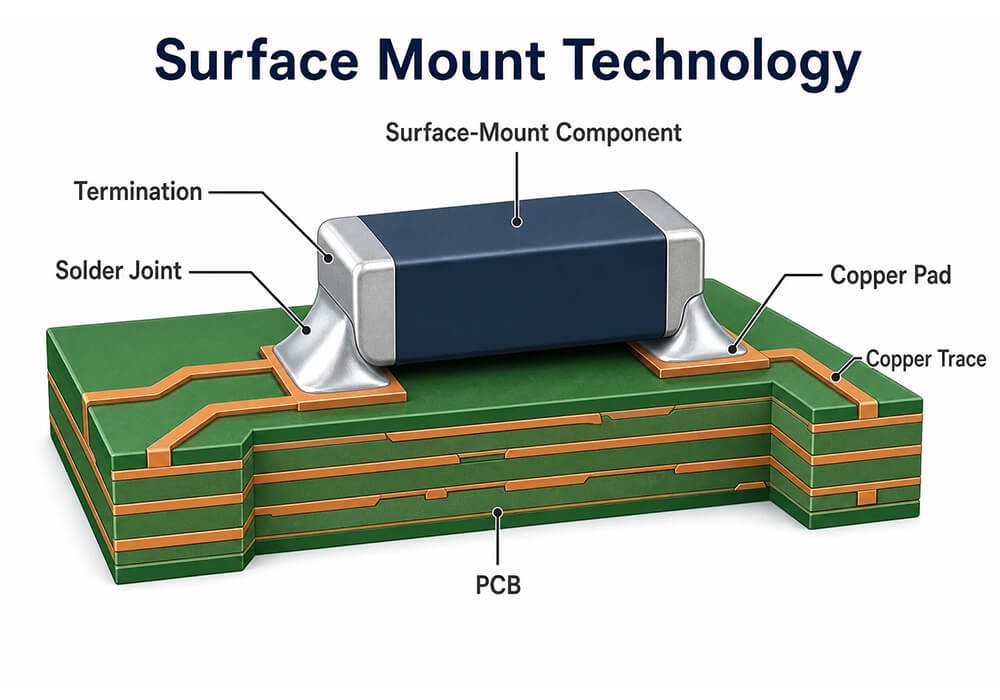

Surface Mount Technology
SMT suits compact layouts, fine-pitch components, and boards with parts on both sides. We review stencil, component placement, and reflow settings, along with access for inspection and rework.

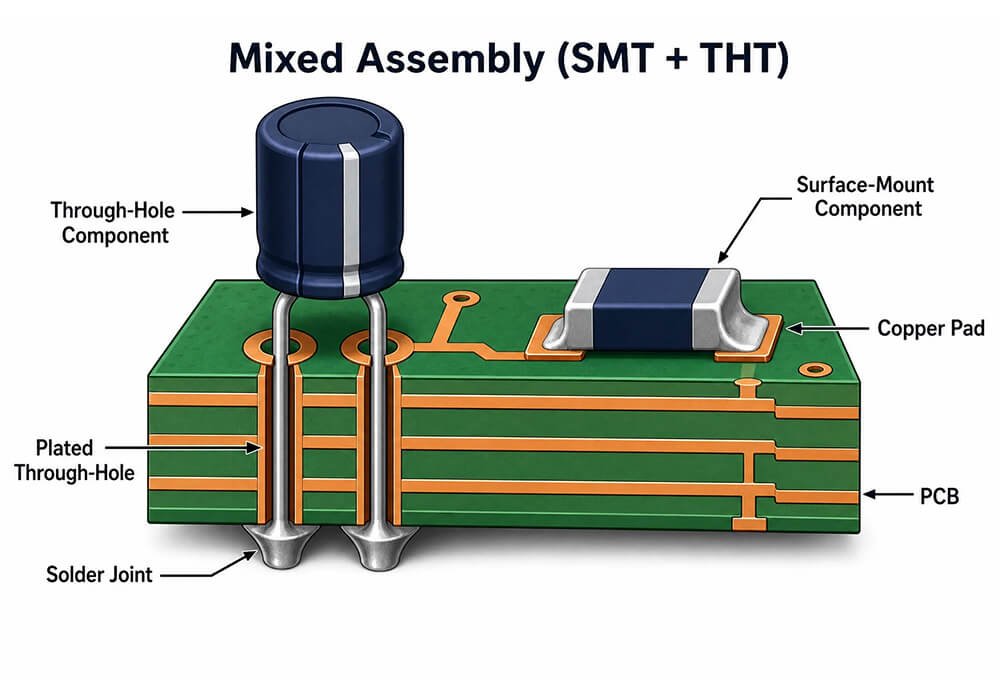

Mixed
Some boards need both methods. Small control components can be surface-mounted, while connectors and larger power components use through-hole mounting. We plan the assembly sequence around the parts and layout.
Our Through-Hole PCB Assembly Capability.
We supports surface-mount assembly for rigid and flexible PCBs across prototype, low-volume, mid-volume, and mass production.
Capability | Specification |
Lead Time | Prototypes: 8–48 hours; Mass Production: 7-10Days. |
Parts Sourcing | Consigned, Partial turnkey, and Full turnkey. |
Stencils | |
Min. Order | No MOQ. |
Board Dimensions | Min. 50 × 50 mm; Max. 774 × 710 mm. |
Board Types | Rigid PCB, FR-4, Metal-Core, Aluminum, Copper, Flex PCB, And Rigid-Flex PCB. |
Component Compatibility | DIP, SDIP, Connectors, QFP, QFN, BGA, CSP, PLCC, SOP, SSOP, TSSOP, and other packages. |
Inspection | Visual Inspection, AOI, and X-ray Inspection |
Functional Testing | FCT, Software Testing, Troubleshooting, And Customer-Specific Functional Verification. |
What Should You Send?
- 1. Gerber or ODB++ fabrication files
- 2. Bill of materials with manufacturer details
- 3. Centroid or component placement data
- 4. Assembly drawings and special instructions
- 5. Testing, programming, and packaging requirements
Wave, Selective, and Press-Fit Options.
The most suitable through-hole assembly method is depends by the PCB design, component types, production volume, and reliability requirements.
Wave soldering is an efficient solution for PCB designs with a large number of through-hole components that can be soldered in a single automated process.
It supports repeatable, high-volume production while reducing assembly time.
Selective soldering is widely used for mixed-technology PCB assemblies that combine SMT and through-hole components.
The process applies solder only to designated locations, minimizing heat exposure to nearby sensitive devices.
Press-fit technology creates reliable electrical and mechanical connections without solder by inserting compliant pins into plated through holes. This method is commonly used for high-reliability connectors and automotive or industrial applications.
THT Design and Build-Package Review.
We will review whether your document support insertion, joining, inspection, testing, and repeat production.
Engineering Reviews:
- PCB, BOM, assembly drawing, and CPL revisions for consistency
- Finished-hole size, lead dimensions, plating, and tolerance compatibility
- Pad, annular ring, thermal connection, copper distribution, and solder-mask conditions
- Component polarity, orientation, seating height, lead protrusion, and reference designators
- Spacing for insertion, tooling, selective-solder nozzles, hand soldering, cleaning, inspection, and rework
- High-thermal-mass connectors, thick copper areas, large metal parts, and component temperature limits
- SMT and THT order, masking, fixtures, secondary heat exposure, and two-sided assembly constraints
- Test points, programming interfaces, functional-test instructions, and acceptance requirements
Through-Hole Assembly Process.
We follow a structured and tightly controlled through-hole PCB assembly process to ensure high mechanical strength, electrical reliability, and repeatable quality.
1. Build-Package Intake
We will checks the Gerber, BOM, and test requirements. Our engineering reviews the component orientation, insertion access, thermal conditions, and acceptance criteria.
2. PCB and Component Preparation
PCBs and components are fabricated, sourced, or received according to the agreed material model.
3. SMT Pre-Assembly When Required
For mixed-technology boards, SMT operations normally follow the approved sequence before THT insertion.
4. THT Insertion and Joining
Operators insert and secure the approved components, then use the quoted manual, wave, selective, or other approved joining process.
5. Cleaning, Inspection, and Testing
Cleaning is planned from the flux system, material compatibility, coating requirements, and contractual cleanliness criteria.
6. Final Acceptance, Traceability, and Packaging
Final review checks the agreed workmanship, testing, records, labels, quantity, and packaging.
Inspection
We will define the inspection methods, coverage, acceptance criteria, and quality according to the project specifications.
1. Visual Inspection
Visual inspection is the first step in verifying assembly quality. It checks component polarity, placement, lead condition, visible solder joints, physical damage, and contamination.
2. AOI
When applicable, we will use AOI to inspect component presence, orientation, and lead alignment.
3. X-Ray Inspection
X-ray inspection is used for selected hidden or difficult-to-access solder joints where visual inspection is insufficient.
4. Electrical Testing
Electrical testing, such as In-Circuit Test (ICT), checks accessible circuit connections, component values, opens, and shorts.
5. Functional Testing
Functional testing verifies that the completed PCB assembly performs according to its intended operating requirements.
6. Cross-Section and Destructive Analysis
We can do cross-section or destructive analysis to evaluate plated through holes, solder joint quality, and internal PCB structures.
Factory Glance.
Our facilities are equipped with wave and selective soldering equipment, precision lead-forming tools, and ESD-controlled manual assembly workstations. Supported by trained technicians and RoHS-compliant manufacturing processes, we maintain consistent quality, process control, and assembly reliability across prototype and production builds.
Industries We Have Previously Served.
Our through-hole PCB assembly are widely used in industries that demand high reliability, mechanical durability, and long operational lifecycles.

Automotive Electronics
We support automotive manufacturers and Tier 1 suppliers with robust PCB assemblies designed for harsh operating environments.
- Engine Control Units (Ecus)
- Battery Management Systems (BMS)
- Power Distribution Modules
- On-Board Chargers And Inverters

Industrial Automation
Industrial environments require durable electronics capable of continuous operation under mechanical and electrical stress.
- PLC
- Motor Drives And Servo Controllers
- Industrial Power Supplies
- Human-Machine Interface (HMI) Systems

Aerospace
We provide high-reliability assemblies for aerospace and defense systems.
- Avionics Systems
- Radar And Communication Equipment
- Navigation And Control Modules

Medical Electronics
Medical devices require precision, stability, and long-term reliability under strict regulatory standards.
- Diagnostic Equipment
- Patient Monitoring Systems
- Imaging Systems
- Laboratory Instruments

Consumer Electronics
For consumer products requiring durability and longevity, through-hole assembly offers added reliability.
- Audio Equipment
- Power Adapters
- Home Appliances
- Gaming And Entertainment Systems

Telecommunication
We support telecom equipment manufacturers with reliable PCB assemblies for network infrastructure.
- Base Stations
- Signal Amplifiers
- Network Switching Equipment
- RF Power Modules

Energy Systems
Through-hole PCB assembly is ideal for high-power applications due to its strong mechanical and electrical properties.
- Switching Power Supplies
- Solar Inverters
- Energy Storage Systems
- Power Distribution Units
Fast Quotation.
Our professional sales and engineering teams provide fast PCB quotes and technical support. Simply send us your Gerber files, BOM, and assembly drawings, and we will respond promptly with a competitive solution.
