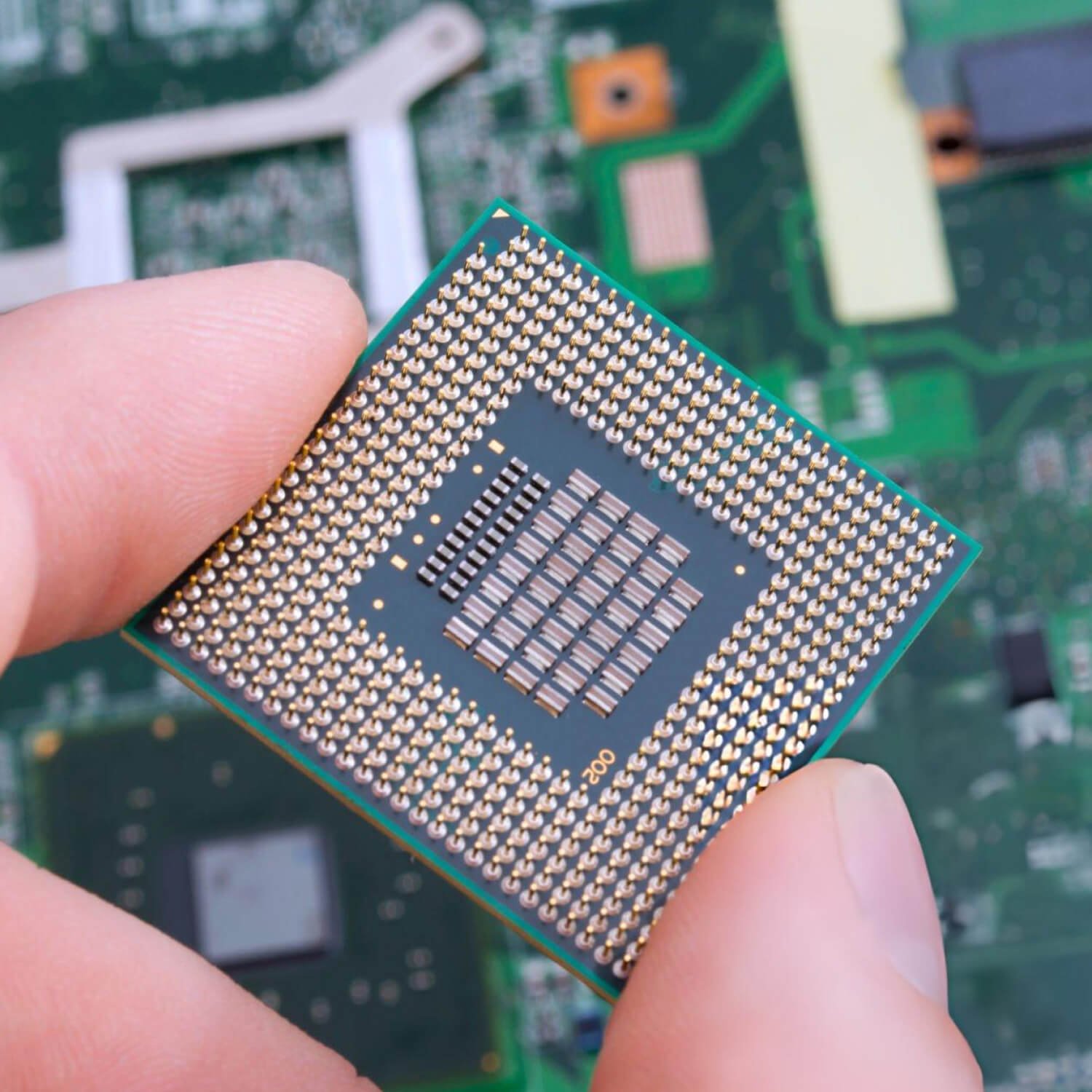

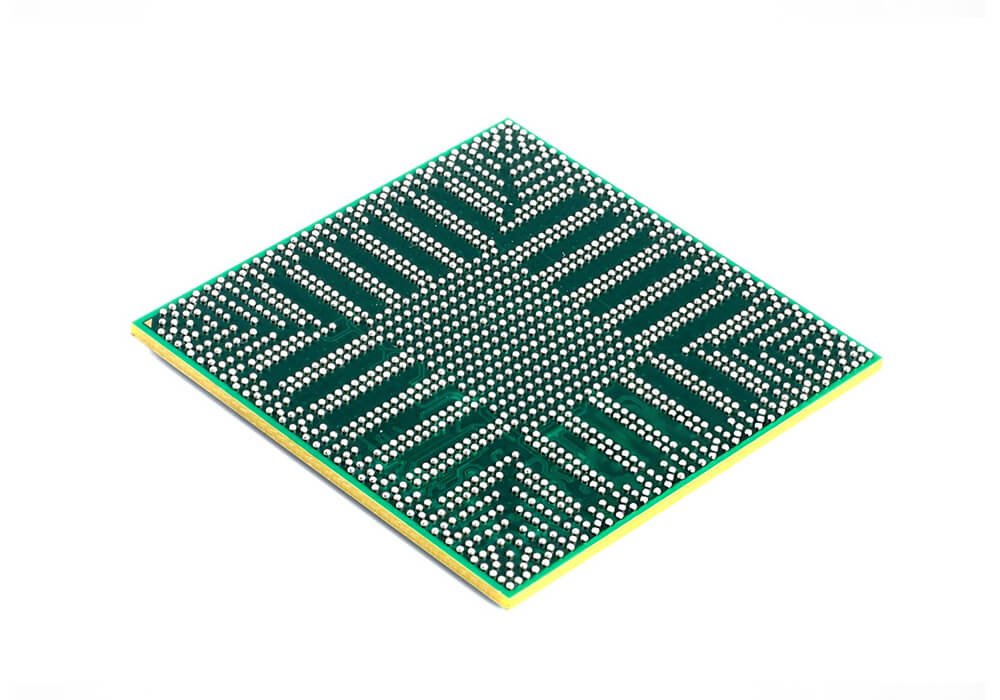

What is BGA Assembly?

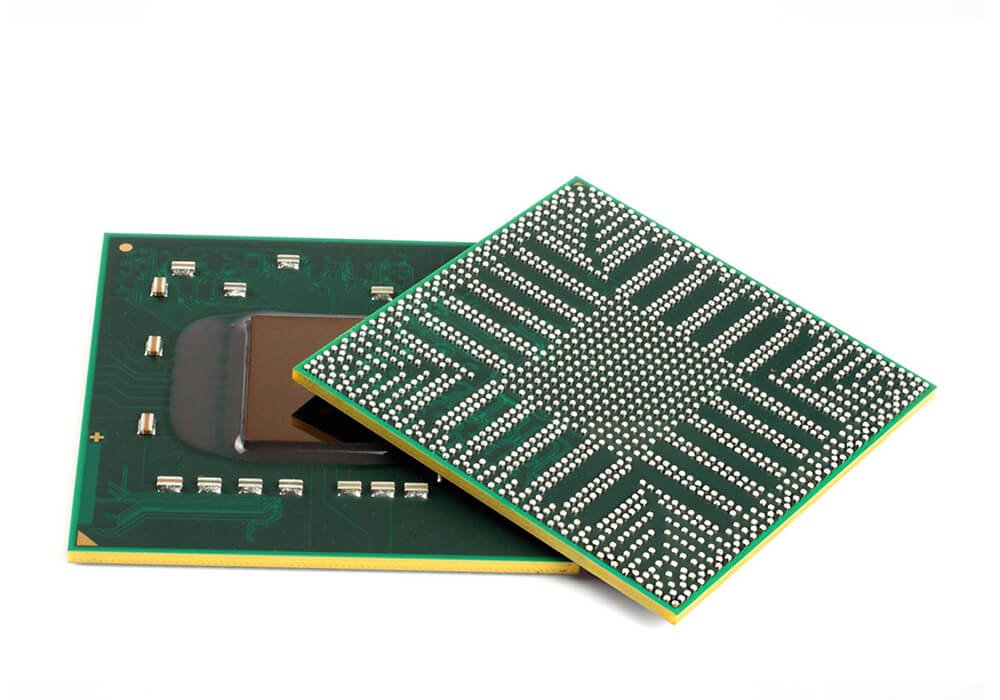

Ball Grid Array (BGA) is a surface-mount packaging technology used for integrated circuits. BGA assembly is a special kind of SMT assembly.
Instead of traditional leads, BGA components use an array of solder balls arranged in a grid pattern beneath the package.
These solder balls serve as electrical and mechanical connections between the IC and the PCB.
Key Characteristics:
- High pin count and density
- Compact footprint
- Improved thermal performance
- Better electrical characteristics due to short interconnections
Compared with traditional packages like QFP, BGA significantly enhances signal integrity, heat dissipation, and board space utilization.
BGA Assembly Type
We provided a comprehensive range of BGA assembly services to support diverse applications—from compact consumer electronics to high-reliability industrial and automotive systems.

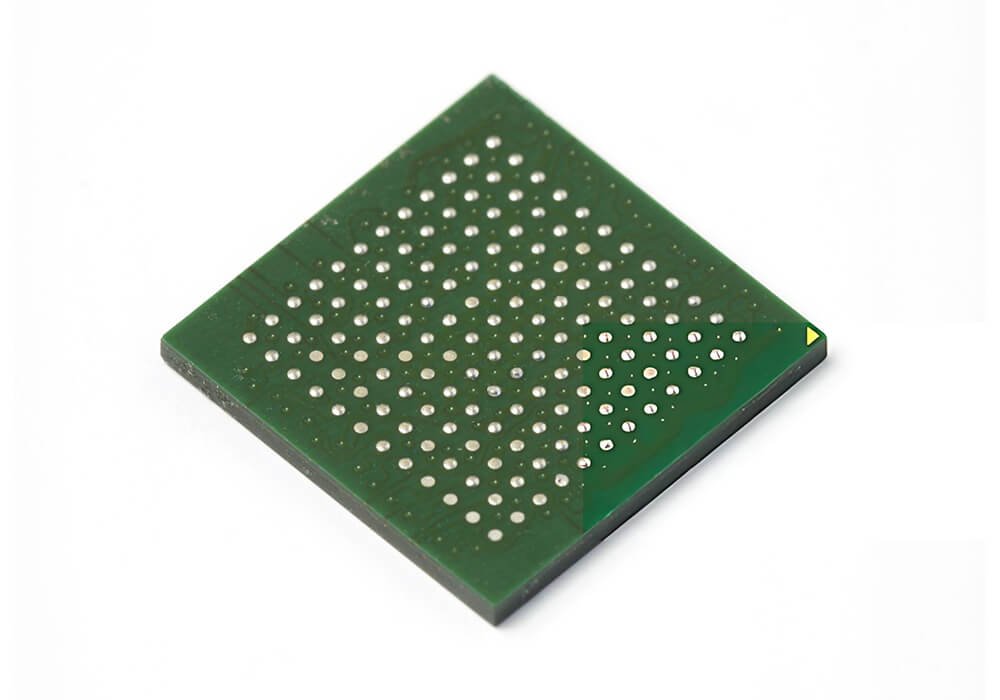

PBGA Assembly
PBGA assembly is the most widely used and cost-effective BGA solution.
What We Offer:
- Standard and fine-pitch PBGA assembly
- Lead-free (RoHS compliant) processes
- High-volume production support
CBGA Assembly
Our CBGA assembly services are designed for high-reliability environments.
What We Offer:
- High-temperature ceramic substrate handling
- Precision reflow profile control
- Strict moisture sensitivity management
TBGA Assembly
We support TBGA assembly for thin and lightweight designs.
What We Offer:
- Flexible substrate assembly
- Advanced thermal management processes
- Fine alignment and placement
FCBGA Assembly
Our FCBGA assembly capability supports high-performance applications.
What We Offer:
- Flip-chip mounting technology
- Underfill process support
- High-speed signal optimization
Micro BGA Assembly
We provide micro BGA assembly for ultra-compact designs.
What We Offer:
- Fine-pitch placement (down to 0.3 mm)
- High-precision solder paste printing
- Advanced inspection systems
BGA Assembly Feature

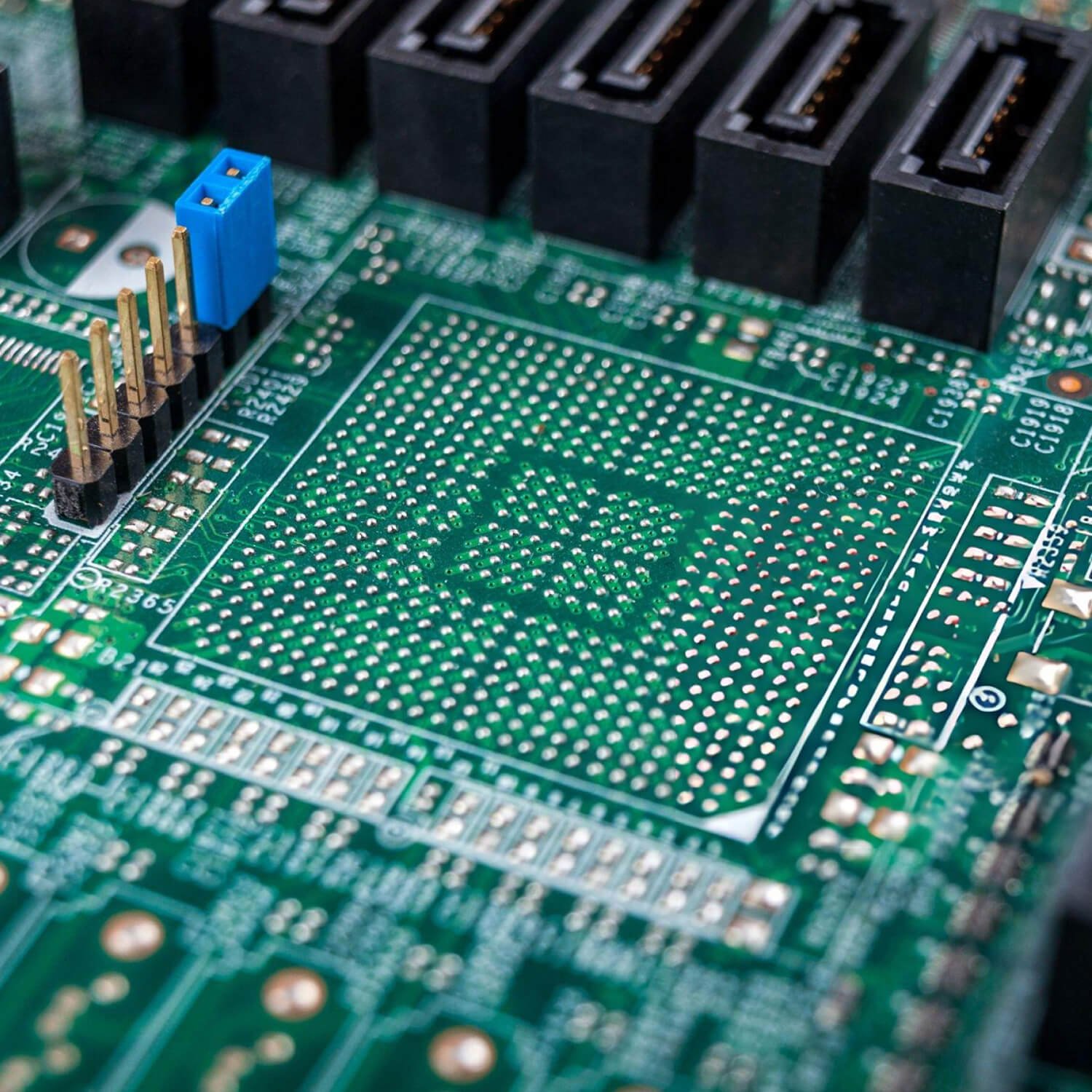

BGA (Ball Grid Array) assembly is a cornerstone of modern high-density PCB manufacturing. At PCBSAIL, our BGA assembly services are engineered to deliver precision, reliability, and performance across all project scales.

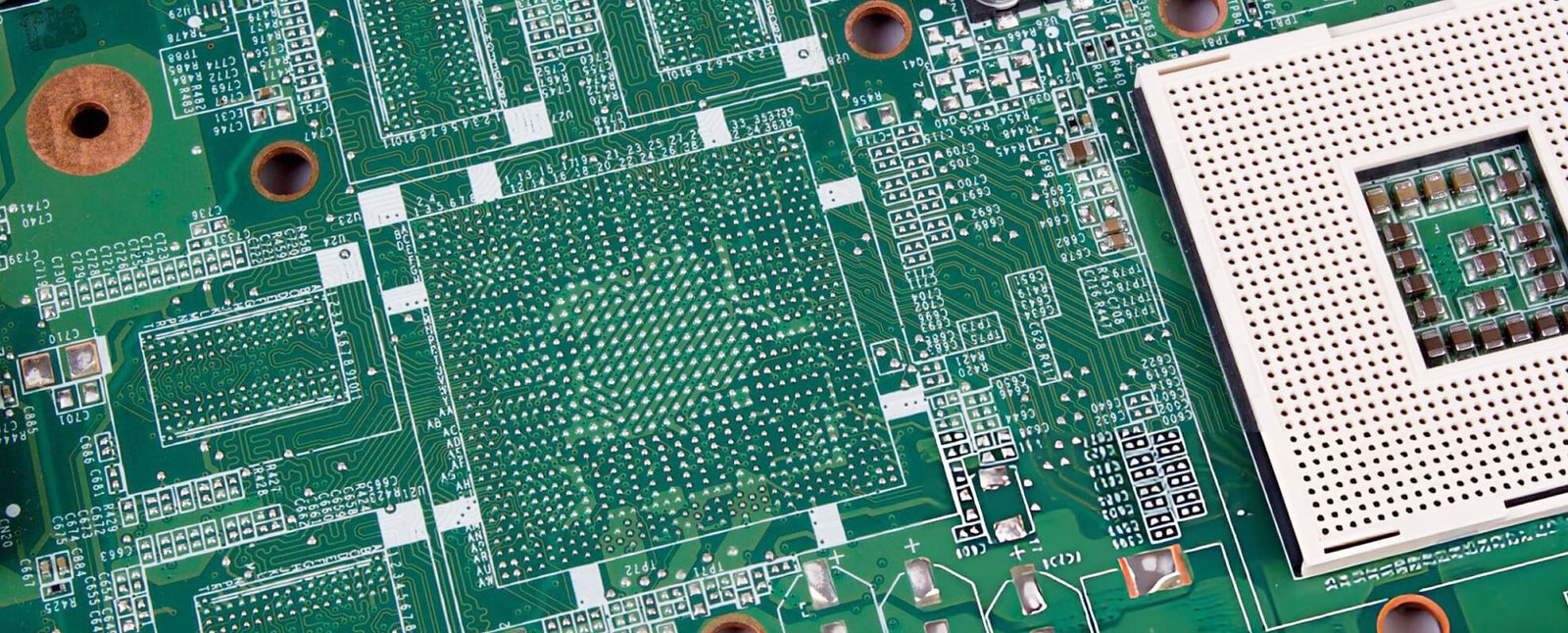

High-Density Interconnection
BGA packages utilize the entire underside of the component for connections, enabling:
- Significantly higher I/O count compared to QFP or SOP packages
- Compact PCB layouts with increased functionality
- Efficient routing for complex multilayer designs
It makes BGA assembly essential for HDI PCB.
Superior Electrical Performance
BGA assembly improves signal integrity due to:
- Shorter electrical paths
- Lower parasitic inductance and resistance
- Reduced signal distortion and crosstalk
Excellent Thermal Management
Thermal performance is a key feature of BGA assembly:
- Direct heat transfer from the chip to the PCB
- Lower thermal resistance compared to leaded packages
- Compatibility with thermal vias and heat sinks
Strong Mechanical
BGA solder joints provide:
- Uniform stress distribution
- Higher resistance to vibration and mechanical shock
- Long-term durability
Fine-Pitch and Miniaturization
BGA assembly supports:
- Fine-pitch solder balls (as low as 0.3 mm or below)
- Ultra-compact component placement
- High-density board designs
BGA Assembly Process
The BGA (Ball Grid Array) assembly process is a highly controlled and precision-driven SMT (Surface Mount Technology) workflow. Each stage is important to ensure reliable solder joints, strong electrical connections, and long-term product stability.
We carry a standardized, IPC-compliant BGA assembly process to ensure quality.
Solder Paste Printing
The process begins with applying solder paste onto the PCB pads using a precision stencil. We need to ensure the correct volume of solder for forming strong and reliable joints.
SPI
After printing, SPI systems are used to inspect solder paste quality. We need to check the paste Volume, height &thickness, and alignment accuracy.
Component Place
BGA components are placed onto the PCB using high-speed pick-and-place machines equipped with vision alignment systems.
Reflow Soldering
The PCB passes through a controlled reflow oven, where solder paste melts and forms connections.
Critical Factors:
- Temperature Profile Optimization
- Controlled Heating And Cooling Rates
- Nitrogen Environment (Optional For High Reliability)
Cooling Process
Controlled cooling solidifies the solder joints. It can prevent thermal stress and avoid cracks and defects to ensure mechanical strength.
AOI
AOI systems inspect visible components and solder joints.
X-Ray Inspection
Since BGA joints are not visible, X-ray inspection is essential.
What We Detect:
- Solder voids
- Bridging and shorts
- Missing or insufficient solder
- Misalignment
Electrical Testing
Functional and electrical tests ensure circuit integrity.
Final Quality
Before shipment, each PCB undergoes final inspection.
Includes:
- Visual Inspection
- Dimensional Checks
- Quality Verification

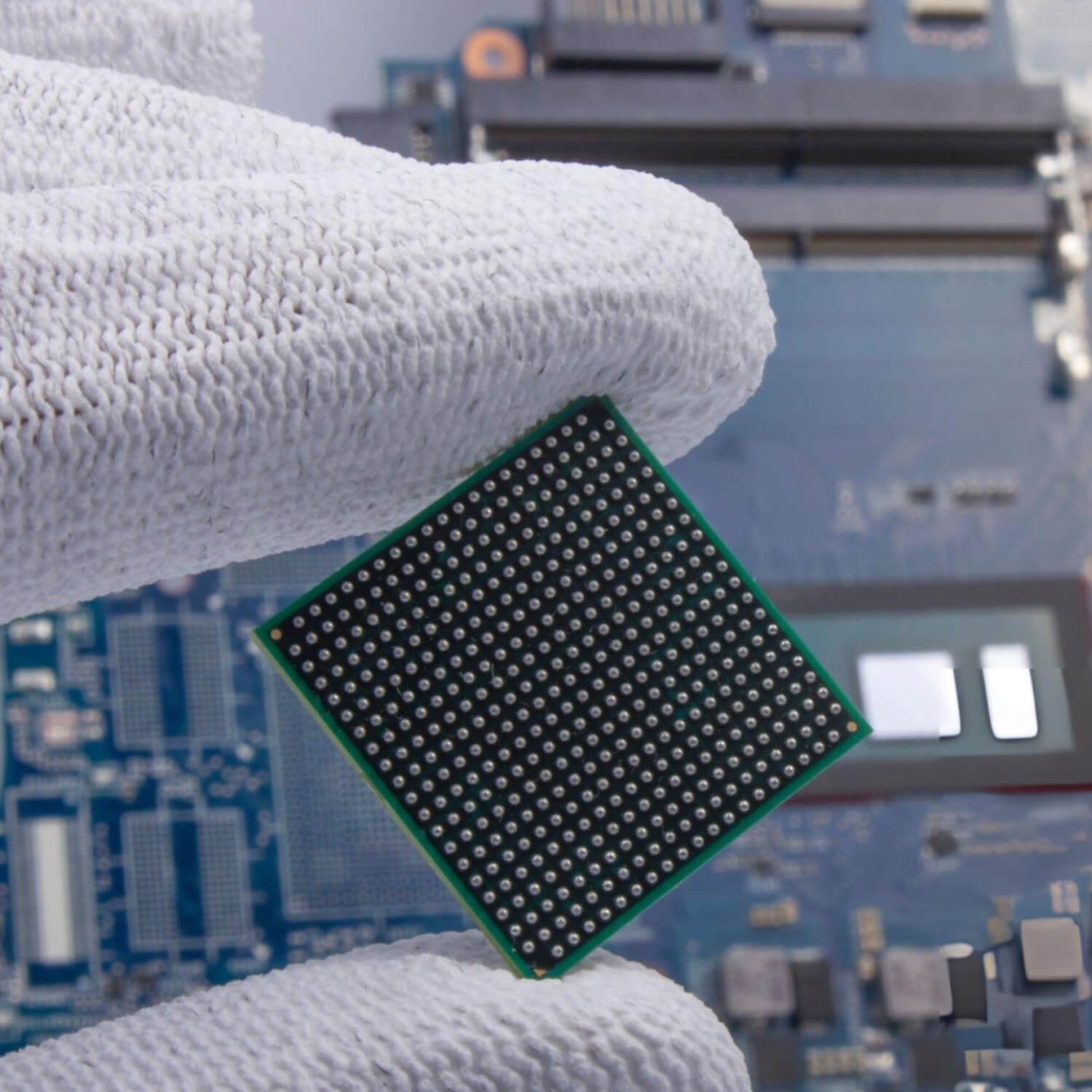

BGA Assembly Quality Inspection
Inspecting BGA (Ball Grid Array) Quality is an important step in PCB assembly because the solder joints are hidden beneath the component.
Unlike traditional packages, BGA defects cannot be reliably detected through visual inspection alone. Therefore, advanced inspection and testing methods are required to ensure electrical integrity, mechanical reliability, and long-term performance.
We implement a multi-layered inspection strategy to eusure its quality.
1. X-Ray Inspection
X-ray inspection is the most important technique for BGA quality control.
What It Detects:
- Solder voids
- Bridging (short circuits)
- Missing or insufficient solder balls
- Misalignment
- Head-in-Pillow defects
2. Automated Optical Inspection
AOI is used for inspecting visible aspects of the assembly.
What It Checks:
- Component placement accuracy
- PCB surface defects
- Solder paste alignment (pre-reflow)
3. Solder Paste Inspection
SPI is performed before component placement.
What It Measures:
- Solder paste volume
- Height and thickness
- Paste alignment
4. Electrical Testing
Electrical testing ensures that the assembled PCB functions correctly.
Methods:
- In-Circuit Testing (ICT)
- Flying Probe Testing
- Functional Testing (FCT)
What It Detects:
- Open circuits
- Short circuits
- Signal integrity issues
5. Endoscopic Inspection
Endoscopes are sometimes used to inspect limited areas under the BGA.

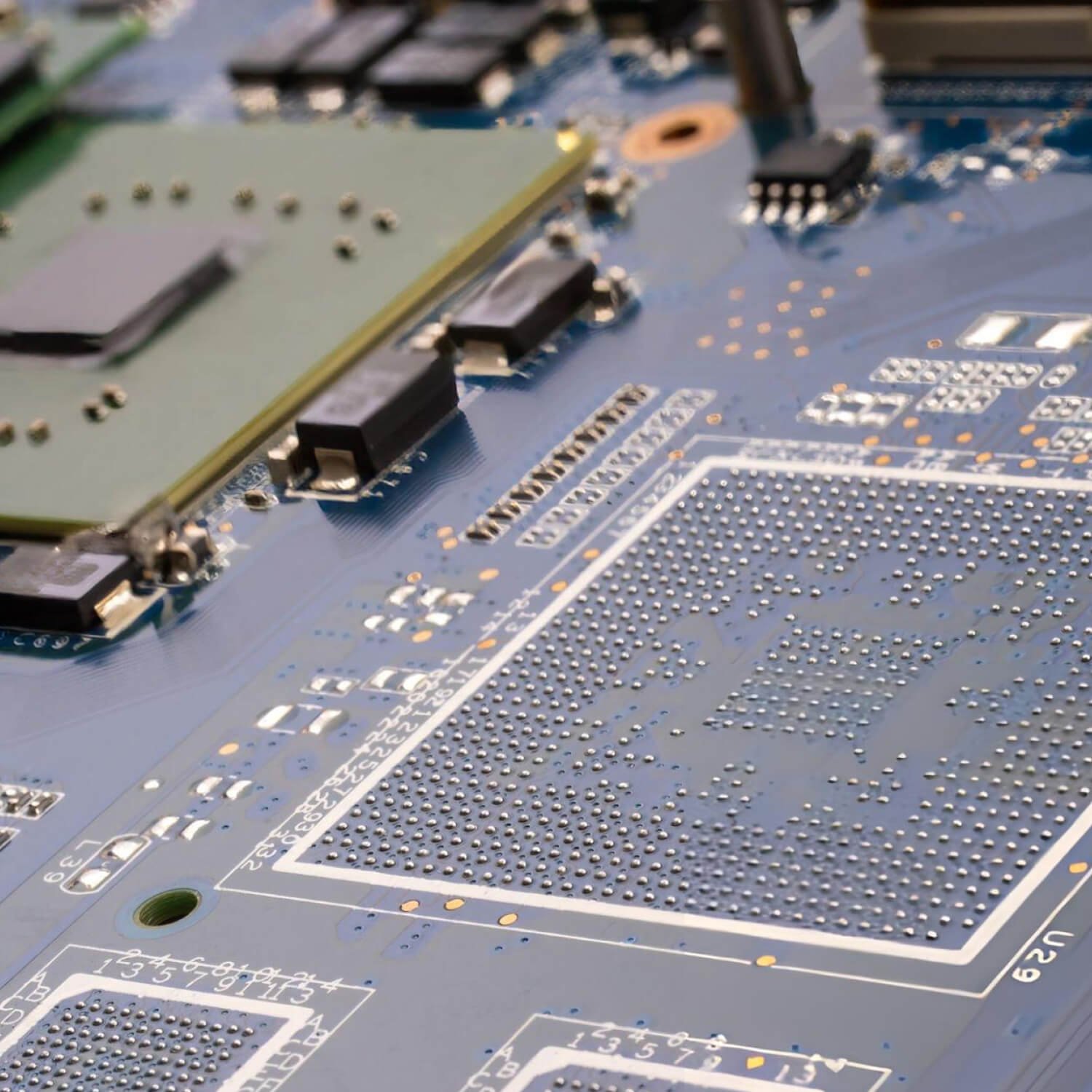

Defects and Prevention
BGA (Ball Grid Array) assembly requires extremely tight process control. Due to the hidden nature of solder joints and fine-pitch structures, even minor deviations can result in defects that compromise reliability.
1. Solder Joint Voids
Voids are air pockets trapped within the solder joint during reflow.
Causes:
- Excessive flux or volatile content
- Improper reflow temperature profile
- Poor solder paste quality
- Contamination on PCB pads
Risks:
- Reduced thermal conductivity
- Weak mechanical strength
- Potential long-term failure
Prevention:
- Optimize reflow profile (controlled ramp-up and soak time)
- Use high-quality, low-void solder paste
- Apply vacuum reflow or nitrogen atmosphere
- Ensure clean PCB surfaces
2. Head-in-Pillow (HiP) Defect
A condition where the solder ball and paste do not fully merge, creating a weak or intermittent connection.
Causes:
- Oxidized solder balls or pads
- Warpage of PCB or component
- Non-uniform heating during reflow
Risks:
- Intermittent electrical connection
- Reduced reliability under thermal cycling
Prevention:
- Store components under proper humidity control (MSL compliance)
- Use fresh solder paste and components
- Ensure uniform temperature distribution
- Optimize reflow profile
3. Solder Bridging / Short Circuits
Unintended solder connections between adjacent pads or balls.
Causes:
- Excess solder paste
- Incorrect stencil design
- Misalignment during placement
Risks:
- Electrical short circuits
- Device malfunction or failure
Prevention:
Optimize stencil thickness and aperture design
Control solder paste volume
Improve placement accuracy
Use AOI and SPI for early detection
4. Cold or Non-Wet Solder Joints
Poor solder bonding where the solder does not properly wet the pad or ball.
Causes:
- Insufficient reflow temperature
- Oxidized surfaces
- Inactive or degraded flux
Risks:
- High electrical resistance
- Weak mechanical strength
- Potential open circuits
Prevention:
- Maintain proper reflow temperature profile
- Clean PCB pads thoroughly
- Use high-quality flux and solder paste
- Ensure proper storage of materials
5. Cracked Solder Joints
Fractures in solder joints caused by mechanical or thermal stress.
Causes:
- Thermal cycling
- Mismatch in CTE (Coefficient of Thermal Expansion)
- PCB warpage
Risks:
- Intermittent or permanent failure
- Reduced product lifespan
Prevention:
- Use materials with matched CTE
- Control cooling rate after reflow
- Minimize board warpage
- Apply underfill for high-stress applications
6. Insufficient Solder Balls
Incomplete solder connections due to missing or inadequate solder.
Causes:
- Poor solder paste printing
- Component defects
- Handling damage
Risks:
- Open circuits
- Functional failure
Prevention:
- Perform SPI inspection
- Verify component quality before assembly
- Use precise pick-and-place systems
Industries We Have Previously Served
Our BGA assembly services are applied in modern electronics industries.
Automotive Electronics
Modern vehicles rely heavily on electronic control systems, many of which use BGA components.
- Engine Control Units (ECUs)
- Advanced Driver Assistance Systems (ADAS)
- Infotainment Systems
- Battery Management Systems (EVs)
Medical Devices
Medical electronics require precision and reliability at the highest level.
- Diagnostic Imaging Equipment
- Patient Monitoring Systems
- Portable Medical Devices
- Surgical Instruments
Consumer Electronics
BGA assembly is essential in compact, high-performance consumer devices.
- Smartphones And Tablets
- Laptops And Desktops
- Gaming Consoles
- Smart Home Devices
Telecommunication
Telecommunication systems require high-frequency and high-speed signal integrity.
- Routers And Switches
- Base Stations
- Network Servers
- 5G Communication Modules
Aerospace
BGA assembly is used in mission-critical systems where reliability is non-negotiable.
- Avionics Systems
- Radar And Communication Systems
- Satellite Electronics
- Defense Control Systems
Fast Quotation
Our professional sales and engineering teams provide fast PCB quotes and technical support. Simply send us your Gerber files, BOM, and assembly drawings, and we will respond promptly with a competitive solution.
- Gushu Tangxi Second Industrial Zone, Shenzhen
- +86 755 2335 0814
- +86 135 1078 8094
- sales@pcbasail.com
FAQ About BGA Assembly
1. What is BGA Assembly?
BGA Assembly is a surface mount technology (SMT) process used to mount BGA-packaged integrated circuits onto a PCB using an array of solder balls.
These solder balls form both electrical and mechanical connections during reflow soldering.
2. What Are The Advantages Of BGA Over Traditional Packages?
BGA offers several advantages compared to packages like QFP:
- Higher pin density
- Better electrical performance (low inductance)
- Improved heat dissipation
- Smaller PCB footprint
- Self-alignment during soldering
3. What Is The Minimum BGA Pitch You Can Handle?
Our advanced SMT capabilities support fine-pitch BGA assembly down to 0.3 mm, ensuring compatibility with high-density and miniaturized designs.
4. Can BGA Components Be Reworked Or Repaired?
Yes, BGA components can be reworked using specialized equipment. The process involves:
- Component removal
- Pad cleaning
- Reballing (if required)
- Reinstallation
However, BGA rework requires precise control and experienced technicians.
5. What Materials Do You Support For BGA Assembly?
We support multiple PCB materials, including:
- FR4
- High-Tg FR4
- High-frequency materials (Rogers)
- Metal core PCB
6. Do You Provide Lead-Free BGA Assembly?
Yes, all our BGA assembly services are RoHS compliant, supporting lead-free solder such as SAC alloys (Sn-Ag-Cu).
7. What Files Are Required For BGA Assembly Quotation?
To provide an accurate quote, we typically require:
- Gerber files
- BOM (Bill of Materials)
- Pick & Place file
- Assembly drawings
- BGA datasheets (if applicable)
8. What Is MSL And Why Is It Important In BGA Assembly?
MSL (Moisture Sensitivity Level) defines how sensitive a component is to moisture.
Improper handling can cause:
- “Popcorning” during reflow
- Internal damage
We strictly follow MSL guidelines, including controlled storage and baking processes.
9. Do You Offer Turnkey BGA Assembly Services?
Yes, we provide full turnkey PCB assembly services, including:
- PCB fabrication
- Component sourcing
- SMT and BGA assembly
- Testing and inspection
