NPI PCB Assembly Services for a Controlled Production Launch.

PCBSAIL helps you turn new PCBA designs and engineering files into documented, tested, and repeatable production.

We can coordinate design-for-manufacturing review, PCB fabrication, BOM and component risk review, SMT and through-hole assembly, first-article approval, inspection, agreed testing, pilot builds, and production handoff.

Engineering Review Before Production

First-Article And Pilot-Build Support

Full-Turnkey, Partial-Turnkey, Or Consigned

Inspection And Testing Around Project Risk

What Is NPI PCB Assembly

What Is NPI PCB Assembly?

NPI PCB assembly (New Product Introduction) is the process of preparing a new circuit board design for production. It includes design review, component sourcing, initial assembly, inspection, testing, and pilot builds.

NPI PCB assembly can help you find and resolve manufacturing problems early and confirm that components are available. It can help establish assembly and testing procedures that can be repeated as production grows.

We can support the production work for each stage. The customer is responsible for the design authority, product validation, regulatory approval, and final release unless the contract states otherwise.

Our NPI Assembly Services.

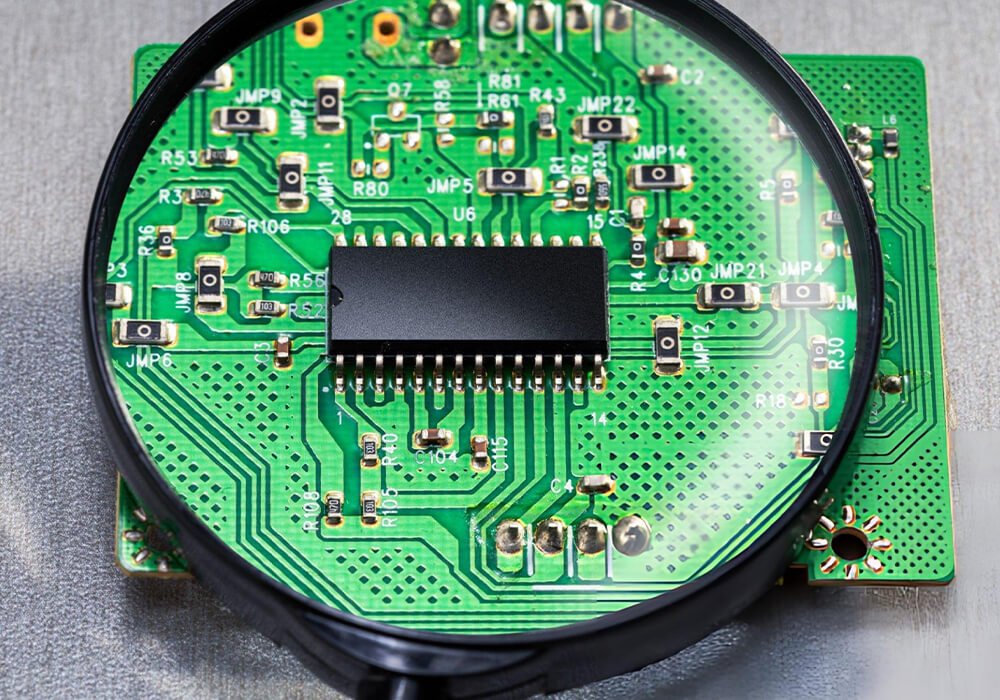

NPI PCB Assembly Identify Risk Before Volume Increases

Find Problems Before Production

We review your design files, component, assembly, and test before the first build.

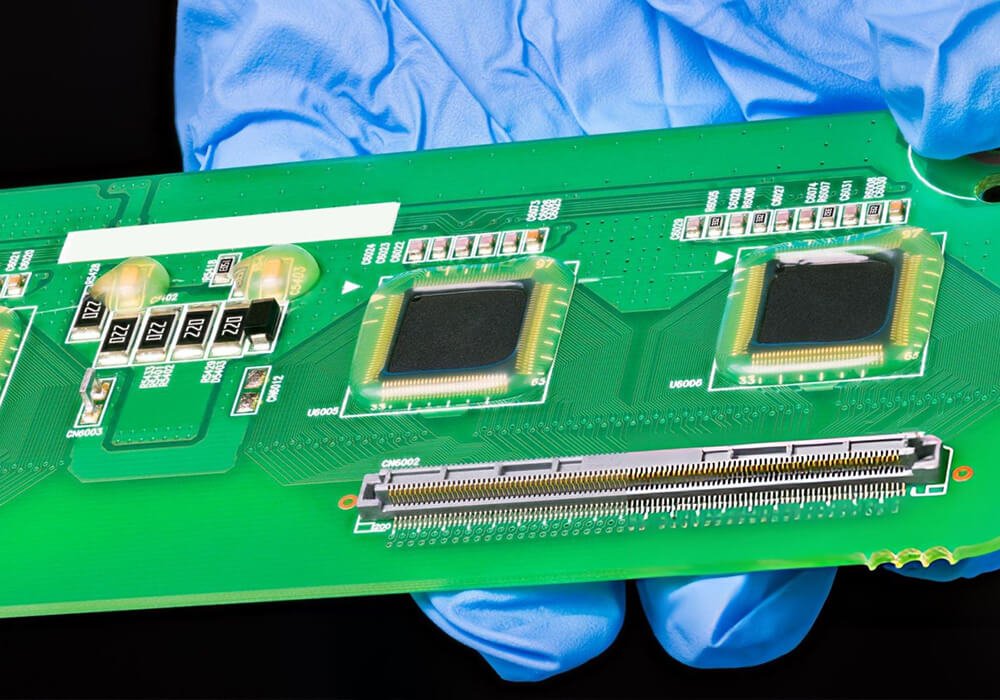

NPI PCB Assembly Control the First Build

Check the First Build

We will review the first assembled boards with your team. And material, defects, or changes will be resolved before completing the batch.

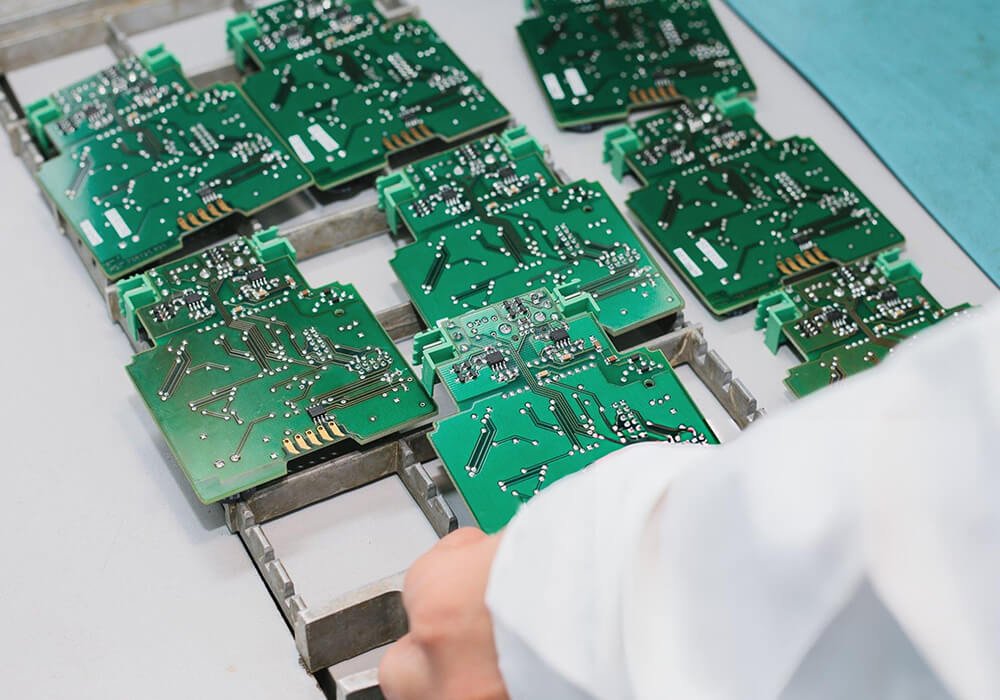

NPI PCB Assembly Build Production Evidence

Build Production Evidence

We record the board revision, component decisions, inspection and test results, and any open issues. It can guide the next build.

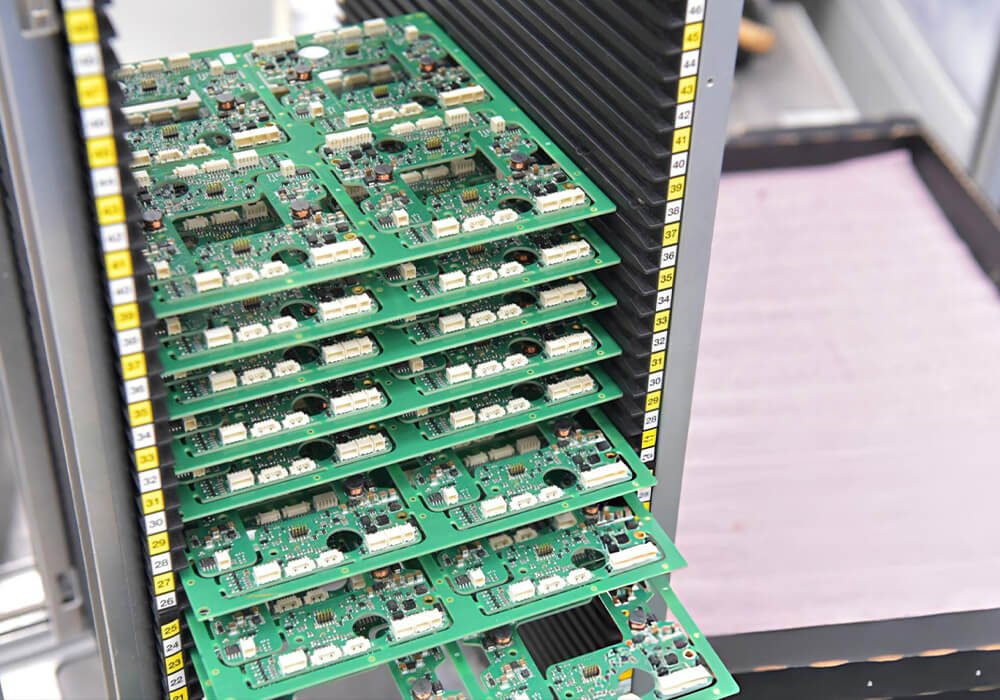

NPI PCB Assembly Keep One Path to Repeat Production

Prepare for Repeat Orders

We coordinate PCB fabrication, component sourcing, PCB assembly, and testing, using the agreed build records to support future production orders.

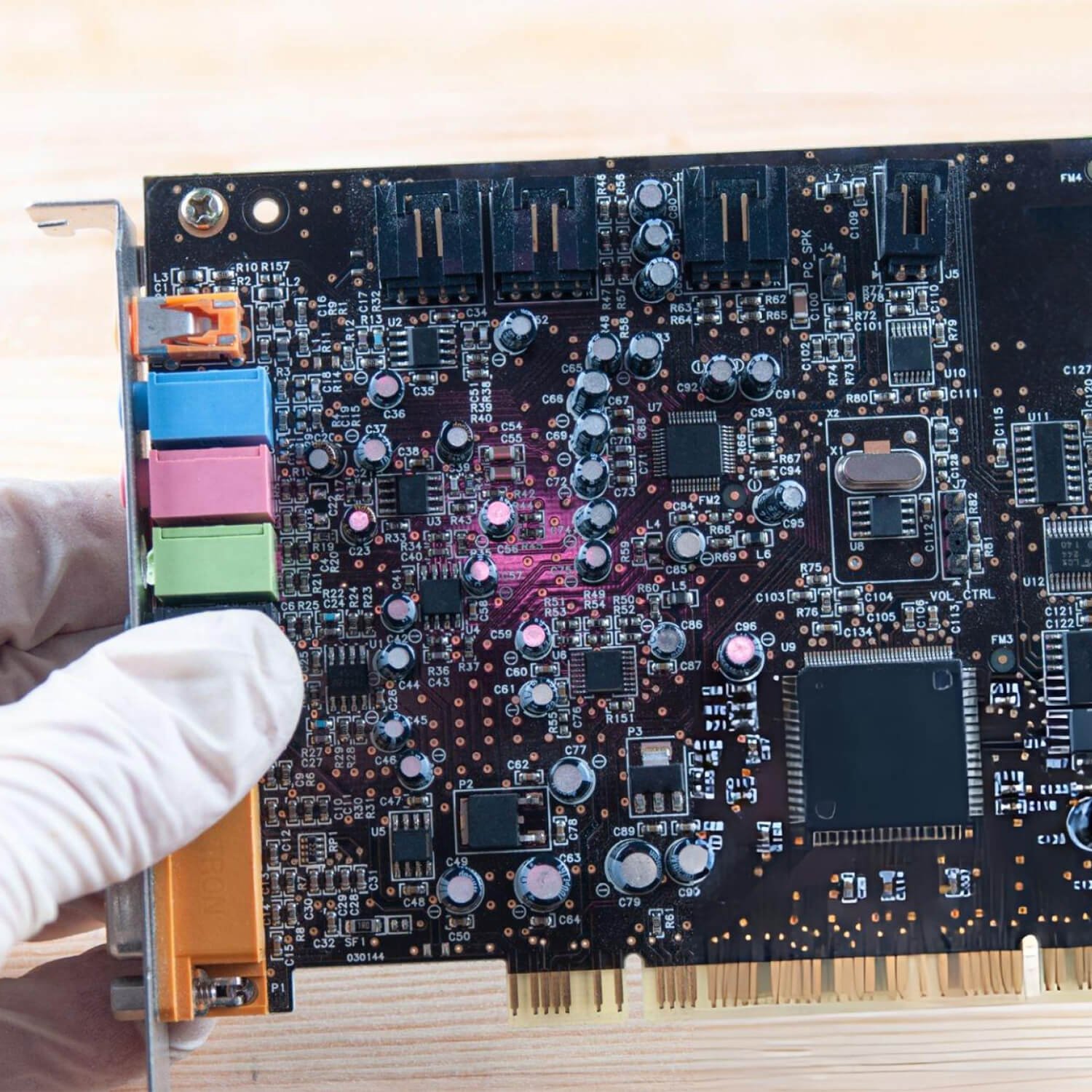

NPI PCB Assembly When Should You Start an NPI PCBA Project

When Should You Start an NPI PCBA Project?

Start NPI when you’re ready to move beyond a one-off prototype and need to check how the board will perform in production.

An NPI review is useful when:

  • Your prototype works, but you haven’t confirmed that it can be built consistently.
  • You’re preparing for EVT, DVT, PVT, or a pilot run.
  • Components are obsolete, in short supply, have long lead times, or come from a single source.
  • The BGA, QFN, fine-pitch packages, or a mix of SMT and through-hole components were used on the board.
  • Test points, fixtures, firmware, procedures, or pass/fail criteria still need work.
  • Different suppliers handle board fabrication, sourcing, assembly, and testing.
  • Earlier builds had recurring defects, needed rework, or failed for reasons you haven’t resolved.
  • You’re transferring an existing design to a new manufacturer.
  • You need to check how the assembled board fits with cables, displays, heat sinks, or the enclosure.

Full-Turnkey, Partial-Turnkey, or Consigned NPI Assembly.

We coordinates PCB fabrication, BOM purchasing, assembly, agreed inspection and testing, packaging, and delivery.

Choose this model when your team wants one supplier to manage most manufacturing and purchasing activities.

Learn More

Your team provides selected components while we sources the remaining BOM items and coordinates fabrication and assembly.

This model is useful for proprietary devices, programmed ICs, allocated parts, customer-owned inventory, or components covered by existing supply agreements.

Your team supplies the component kit while we manages receiving, assembly, agreed inspection and testing, and delivery.

Confirm kit quantities, attrition allowance, packaging, labels, moisture-sensitive handling, excess return, and the process for shortages or damaged material before shipment.

Our NPI PCB Assembly Process.

We adapts each NPI workflow to the design, project stage, sourcing model, and test requirements.

SMT Assembly Equipment

1. Build-Package Review

Send Gerber or ODB++ files, BOM, placement data, schematics, and document. We will check file completeness and revision consistency before quotation.

2. DFM, DFA, and DFT Review

We review PCB construction, panelization, footprints, polarity, component spacing, soldering risks, and so on.

3. BOM and Supply-Chain Review

The SMT assembly process starts with applying solder paste onto the PCB pads using a precision stainless steel stencil.

4. Manufacturing and Test Planning

Both teams define sourcing responsibilities, assembly processes, first-article approval, inspection, testing, traceability, packaging, and change control.

5. PCB and Material Preparation

Approved PCBs enter fabrication while components are purchased or received. Materials are checked, prepared, and kitted for assembly.

6. First-Article Assembly

We builds and inspects the first article before releasing the remaining quantity.

7. Pilot Build Validation

A controlled pilot batch verifies whether the approved materials, assembly process, inspection, and testing can be repeated.

8. Production Handoff

We will establish the approved manufacturing baseline, including BOM, assembly, testing, and so on.

Inspection and Testing for NPI PCB Assembly.

We applies different inspection and test methods to verify assembly quality and process consistency.

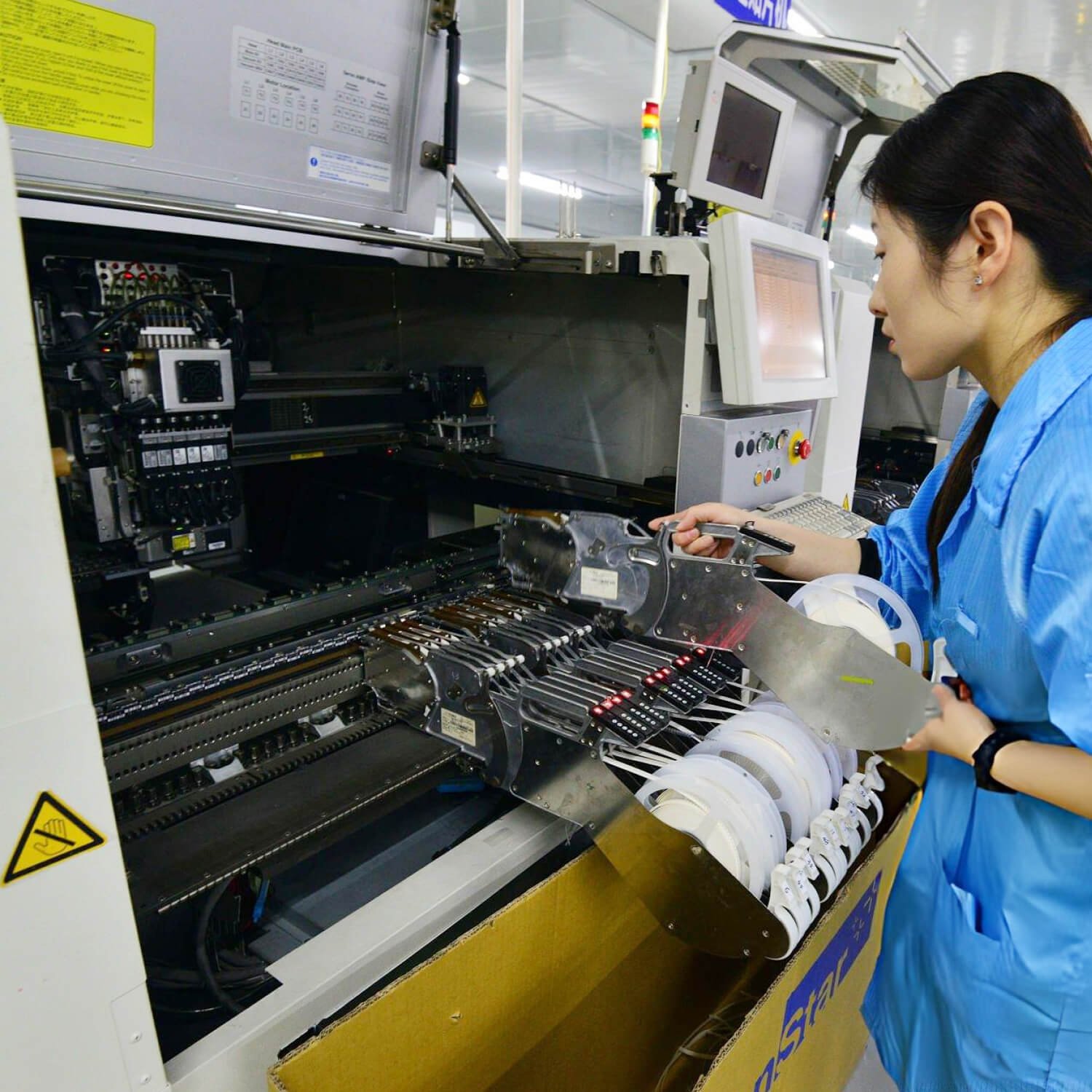

PCB Assembly Features

1. Incoming Inspection

It review verifies material identity, quantities, packaging condition, and required documentation.

2. SPI

SPI evaluates solder paste printing quality. It helps prevent solder-related defects.

3. AOI and Visual Inspection

AOI and visual checks verify component presence, orientation, alignment, polarity, and visible solder joint quality.

4. X-Ray Inspection

X-ray inspection is used for assemblies containing concealed solder connections, such as BGA, QFN, and LGA packages.

5. Flying Probe and ICT

Flying probe testing and ICT evaluate electrical connectivity and selected circuit or component parameters.

6. Functional Testing

Functional testing verifies product operation according to customer-defined procedures, test conditions, and acceptance limits.

7. Engineering Bench Evaluation

Engineering evaluation supports troubleshooting, design validation, and performance analysis through selected measurements and debugging activities.

Why Choose Us?

We coordinates PCB fabrication and PCBA work through one project path. This reduces handoffs when panelization, surface finish, solderability, sourcing, assembly, and test questions cross supplier boundaries.

Fabrication And Assembly Coordination

One team can manage the bare board, material, assembly, inspection, and delivery scope.

Questions Before Release

File, BOM, process, and test concerns are raised before an approved build proceeds.

Flexible Material Ownership

Choose full-turnkey, partial-turnkey, or consigned assembly.

Controlled Approval Points

First-article and pilot stages limit exposure while findings are reviewed.

Continuity Into Repeat Orders

Approved revisions, BOM decisions, tests, and open issues remain connected to later builds.

Factory Glance.

Our factory was equipped with automated SMT lines, intelligent process control systems, and advanced inspection equipment to support reliable PCB assembly from prototypes to high-volume production.

Wave Soldering Machine
Universal SMT Machine
SPI
Speed SMT Machine
Sample Tester
Reflow Oven
Laser Stencil Mach
KIC Oven Profiling System
Fully Automated PCB Depaneling Equipment
Automatic Printing Machine

NPI PCB Assembly for Demanding Electronics Projects.

PCB Manufacturer Automotive Electronics

Automotive

Automotive product can require customer-specific quality, process, documentation, and change-control requirements. Certification or quality-system alone does not make every project automatically compliant; the applicable scope must be reviewed and agreed before quotation and production.

PCB Manufacturer Industrial Automation

Industrial Automation

Industrial products often combine long service life, connectors, power sections, communication interfaces, and field-replaceable assemblies. NPI planning can align component lifecycle, mechanical fit, workmanship, functional test, labeling, and repeat-order control before deployment.

PCB Manufacturer Medical Devices

Medical Electronics

Medical projects may require strict change control, traceability, cleanliness, risk documentation, and customer-defined verification. We confirms the manufacturing scope and applicable quality requirements before accepting regulated work.

PCB Manufacturer Telecommunications

Telecommunication

Communication assemblies can depend on controlled impedance, high-frequency materials, dense packages, connector alignment, firmware, and product-level test. Manufacturing review should complement—not replace—the customer’s signal-integrity and product-validation work.

Power Electronics

Power Systems

Power project can involve thermal mass, high-current connections, isolation requirements, large components, and mixed assembly. Early review should connect the PCB design, component selection, soldering route, inspection access, and functional test.

Start Your NPI PCB Assembly Review.

Send your current manufacturing package, target quantity, project stage, required date, and test expectations. We will review the available information, identify the questions needed for quotation, and define an appropriate manufacturing scope.

FAQ About NPI PCB Assembly.

1. What is the difference between NPI and prototype PCB assembly?

Prototype assembly verifies the circuit and basic product concept. NPI evaluates whether the design, BOM, assembly route, inspection, test method, and records can support controlled production. A functional prototype may still need changes before it is ready for repeat manufacturing.

We can support manufacturing activities for customer-defined EVT, DVT, PVT, or pilot stages. The customer should define the purpose, quantity, validation plan, deliverables, and approval criteria because these stage labels are not used identically by every company.

We can review supplied fabrication, assembly, component, and test information for manufacturing concerns. Review depth depends on the available files and agreed scope. Product design verification and final design authority remain with the customer unless agreed otherwise.

A first-article stage can be included in the NPI plan. The quotation should define quantity, inspection, testing, approval method, and release conditions. Approval confirms the agreed checks; it does not validate every product requirement or field condition.

Yes. The customer can release repeat production after relevant design, material, process, inspection, and test risks are closed or accepted. Repeat orders should reference the approved PCB, BOM, firmware, test, acceptance, labeling, and packaging revisions.
