Wifi Router PCB

A Wifi Router PCB is the core spare part that enables wireless communication in modern networking devices.

At PCBSAIL, we specialize in manufacturing high-performance Wifi Router PCBs, which is designed for high-frequency signal transmission, stable connectivity, and long-term reliability.

With over 10 years of experience in PCB fabrication and assembly, we provide end-to-end Wifi Router PCB solutions, from design optimization to mass production.

What Is Wifi Router PCB

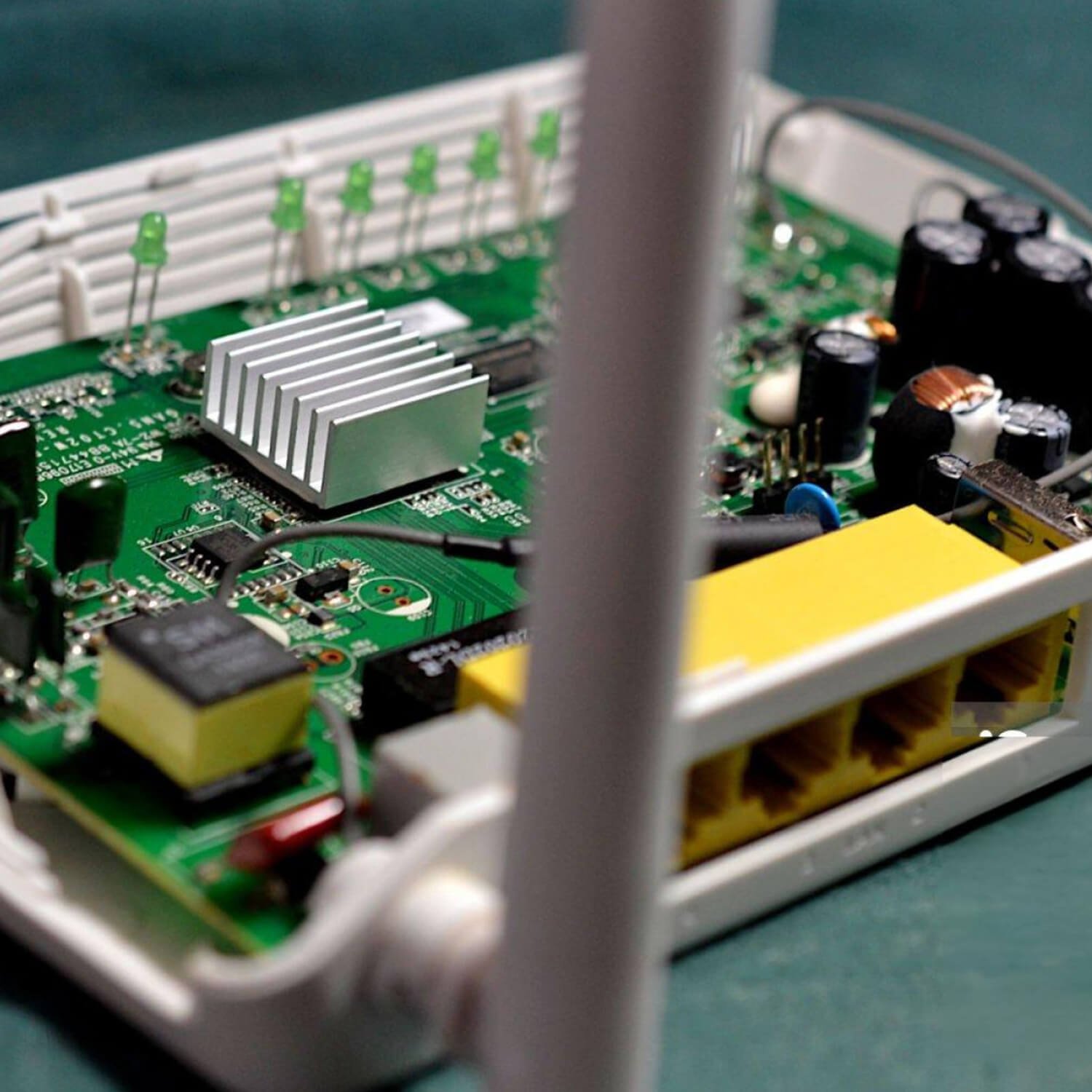

What Is Wifi Router PCB?

A Wifi Router PCB is the core circuit board inside a wireless router. It enables communication between devices through radio frequency (RF) signals.

It integrates some components, such as the microcontroller, WiFi chipset, antennas, and power circuits, to manage both wired and wireless data transmission.

Modern Wifi Router PCBs support multiple wireless standards, including:

  • 2.4GHz and 5GHz dual-band communication
  • WiFi 6 (802.11ax) for high-speed connectivity
  • Emerging WiFi 7 technologies for ultra-low latency

These PCBs can handle high-frequency signals and keep minimal signal loss.

Wifi Router PCB We Offered.

We offer a comprehensive range of Wifi Router PCBs to meet different needs.

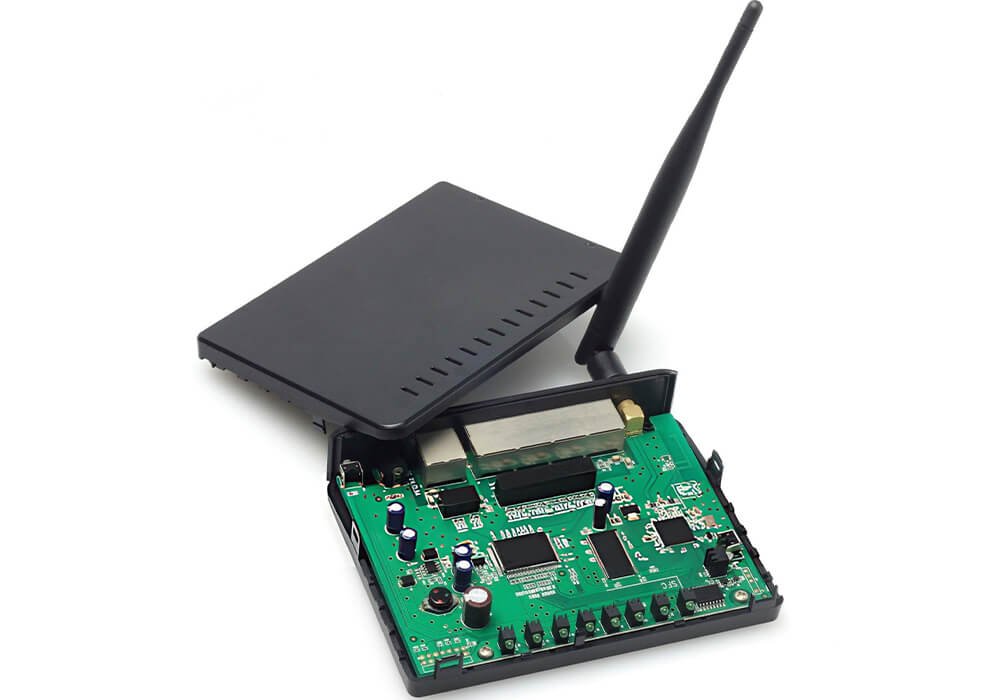

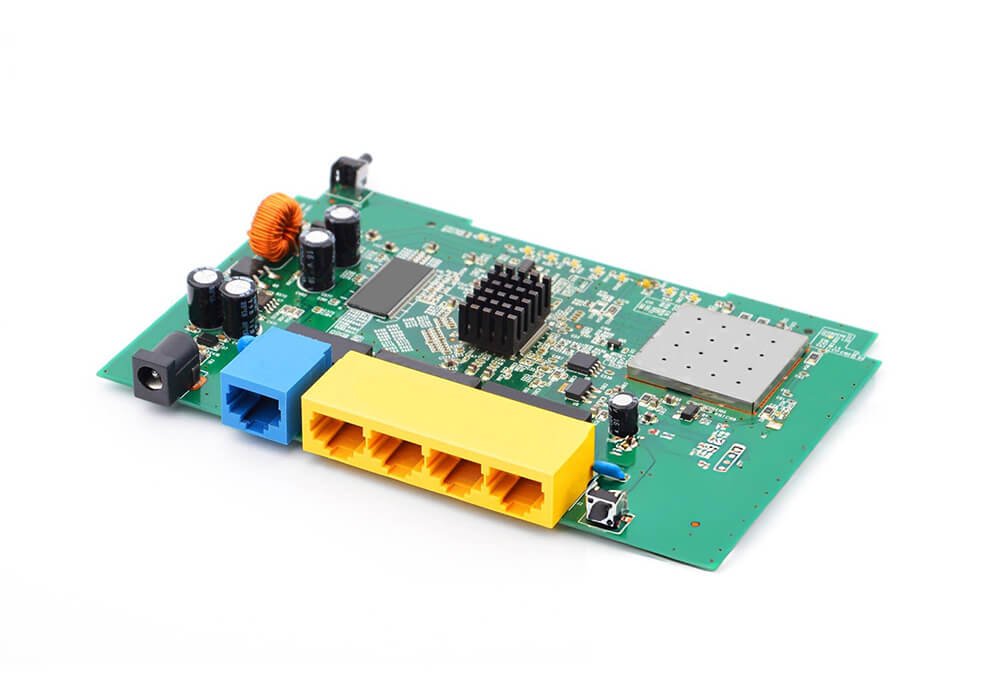

Best Wifi Router PCB
Cheaper Wifi Router PCB

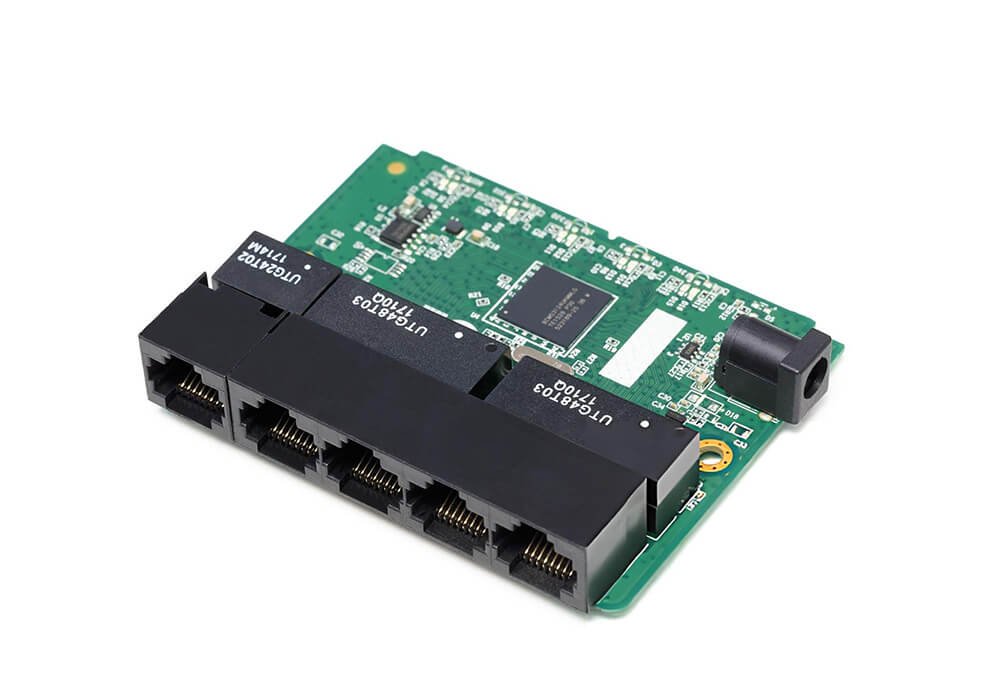

Wifi Router PCB Near Me

Our Capacity.

Flex PCB Single-Sided Flex PCB

Standard PCB

Our Standard Wifi Router PCB is designed for general-purpose networking devices, delivering stable performance with cost efficiency.

  • Supports 2.4GHz And 5GHz Dual-band Frequencies
  • Stable And Reliable Signal Transmission
  • Optimized for Cost-sensitive Applications

Flex PCB Double-Sided Flex PCB

High-Speed Wifi PCB

Our High-Speed Wifi Router PCBs are built for next-generation wireless standards, such as WiFi 6 and WiFi 7. It can handle ultra-fast data rates and high device density.

  • High Data Throughput
  • Ultra-Low Latency For Real-Time Communication
  • Advanced RF Layout Optimization
  • Enhanced Signal Integrity

Flex PCB Multilayer Flex PCB

IoT Wifi Module PCB

The IoT Wifi Module PCB is a compact and efficient solution designed for embedded wireless systems. It enables seamless connectivity in space-constrained and low-power applications.

  • Small For Compact Devices
  • Low Power Consumption For Energy Efficiency
  • Easy Integration With Microcontrollers And Sensors

Flex PCB Single-Sided Flex PCB

Multilayer Wifi Router PCB

Our Multilayer Wifi Router PCB is designed for complex and high-performance networking devices.

  • 4 To 8+ Layer Stack-Up Configurations
  • Dedicated Layers For RF, Power, And Signal Routing
  • Reduced Electromagnetic Interference (EMI)
  • Improved Signal Integrity And Routing Efficiency

Flex PCB Double-Sided Flex PCB

RF Optimized Wifi PCB

The RF Optimized Wifi Router PCB is engineered for high-frequency signal transmission. It can ensure superior RF performance and minimal signal degradation.

  • Controlled Impedance Routing For RF Stability
  • Low-Loss, High-Frequency Materials (E.G., Rogers Laminates)
  • Optimized RF Matching Networks
  • Reduced Signal Attenuation And Interference

Item

Rigid PCB

Flexible PCB

Rigid-Flex PCB

Max Layer

60L

8L

36L

Inner Layer Min Trace/Space

3/3mil

3/3mil

3/3mil

Out Layer Min Trace/Space

3/3mil

3.5/4mil

3.5/4mil

Inner Layer Max Copper

6oz

2oz

6oz

Out Layer Max Copper

6oz

20z

3oz

Min Mead hanical Driling

0.15mm

0.1mm

0.15mm

Min Laser Drilling

0.1mm

0.1mm

0.1mm

Max Aspect Ratio (Mechanical Drilling)

20:01

10:01

12:01

Max Aspect Ratio (Laser Drilling)

1:01

/

1:01

Press Fit Hole Tolerance

±0.05mm

±0.05mm

±0.05mm

PTH Tolerance

±0.075mm

±0.075mm

±0.075mm

NPTH Tolerance

±0.05mm

±0.05mm

±0.05mm

Countersink Tolerance

±0.15mm

±0.15mm

±0.15mm

Board Thickness

0.4-8mm

0.1-0.5mm

0.4-3mm

Board Thickness Tolerance(<1.0mm)

±0.1mm

±0.05mm

±0.1mm

Board Thickness Tolerance(≥1.0mm)

±10%

/

±10%

Min Board Size

10*10mm

5*10mm

10*10mm

Max Board Size

22.5*30 inch

9*14 inch

22.5*30 inch

Contour Tolerance

±0.1mm

±0.05mm

±0.1mm

Min BGA

7mil

7mil

7mil

Min SMT

7*10mil

7*10mil

7*10mil

Min Solder Mask Clearance

1.5mil

3mil

1.5mil

Min Solder Mask Dam

3mil

8mil

3mil

Min Legend Width/Height

4/23mil

4/23mil

4/23mil

Strain Fillet Width

/

1.5±0.5mm

1.5±0.5mm

Bow &Twist

0.003

/

0.0005

Standards for Wifi Router PCB.

To ensure reliability, safety, and global compatibility, our Wifi Router PCB comply with international standards.

PCB Certificate

IPC Standards

We follow internationally recognized IPC standards to ensure consistency and manufacturing excellence.

PCB Certificate

ISO

Our manufacturing processes are certified under globally recognized ISO systems.

PCB Certificate

FCC

Since Wifi Router PCB operates in high-frequency wireless environments, PCB should meet FCC compliance.

PCB Certificate

RoHS

Our Wifi Router PCB products are fully compliant with RoHS directives.

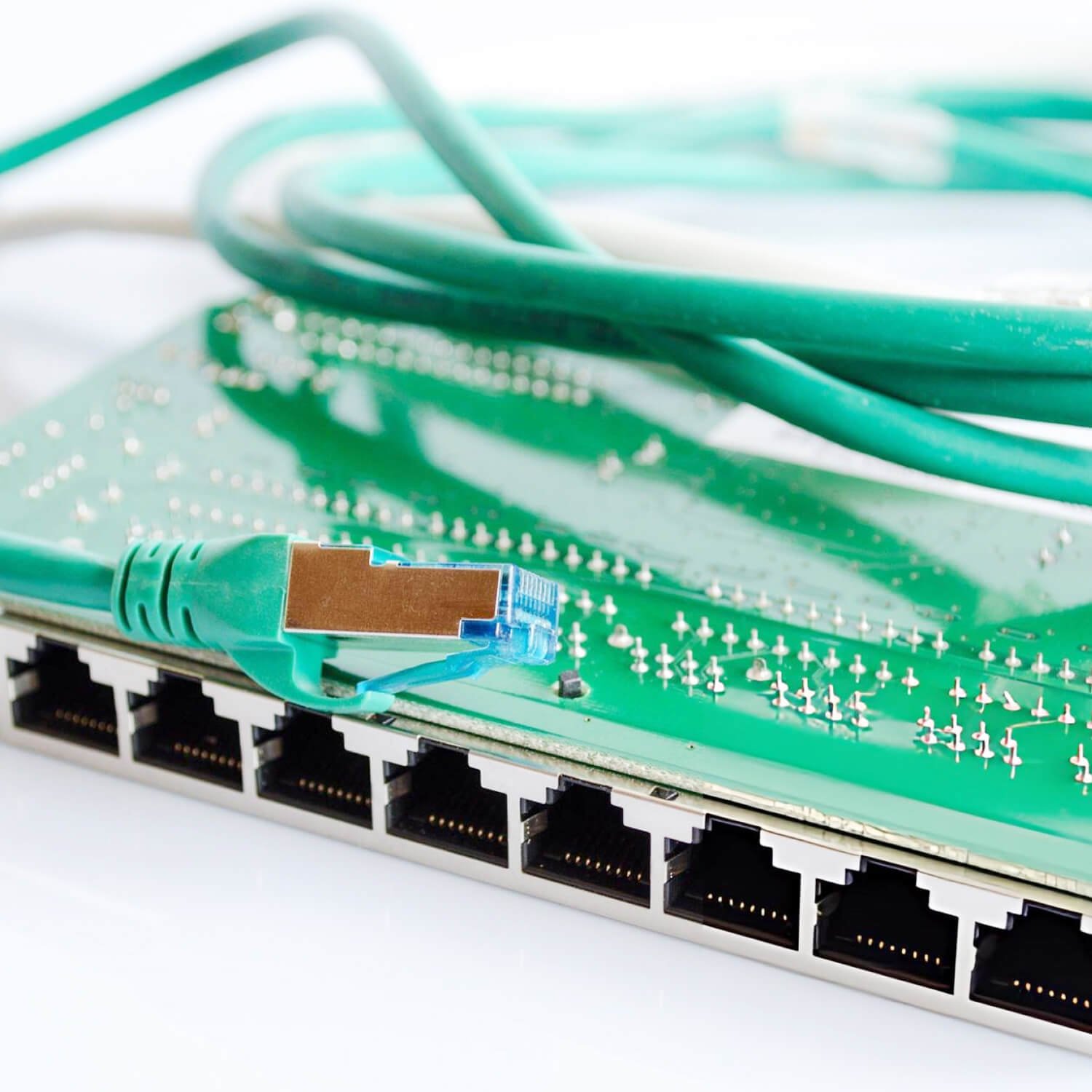

Wifi Router PCB Feature

Our Wifi Router PCB can offer superior performance in modern wireless communication systems.

Our Wifi Router PCB can support high-speed wireless standards, including WiFi 5, WiFi 6, and emerging WiFi 7.

  • Optimized For High Bandwidth Applications
  • Supports Fast Data Transfer Rates
  • Ensures Smooth Streaming And Real-Time Communication

We implement advanced RF techniques to ensure stable and efficient wireless communication.

  • Controlled Impedance Routing
  • Optimized RF Layout And Matching Networks
  • Reduced Signal Reflection And Loss

Signal integrity is important for any Wifi Router PCB, especially at high frequencies.

  • Use Of Low-Loss Materials For High-Frequency Designs
  • Short And Optimized Signal Paths
  • Stable Performance Across 2.4GHz And 5GHz Bands

Our boards are designed to minimize electromagnetic interference.

  • Dedicated Ground Planes And Shielding Design
  • Reduced Crosstalk Between High-Speed Signals
  • Improved Overall System Stability

Efficient heat dissipation can ensure long-term reliability and stable performance.

  • Thermal Vias And Copper Balancing
  • Optimized Component Placement
  • Reduced Risk Of Overheating
Wifi Router PCB Feature

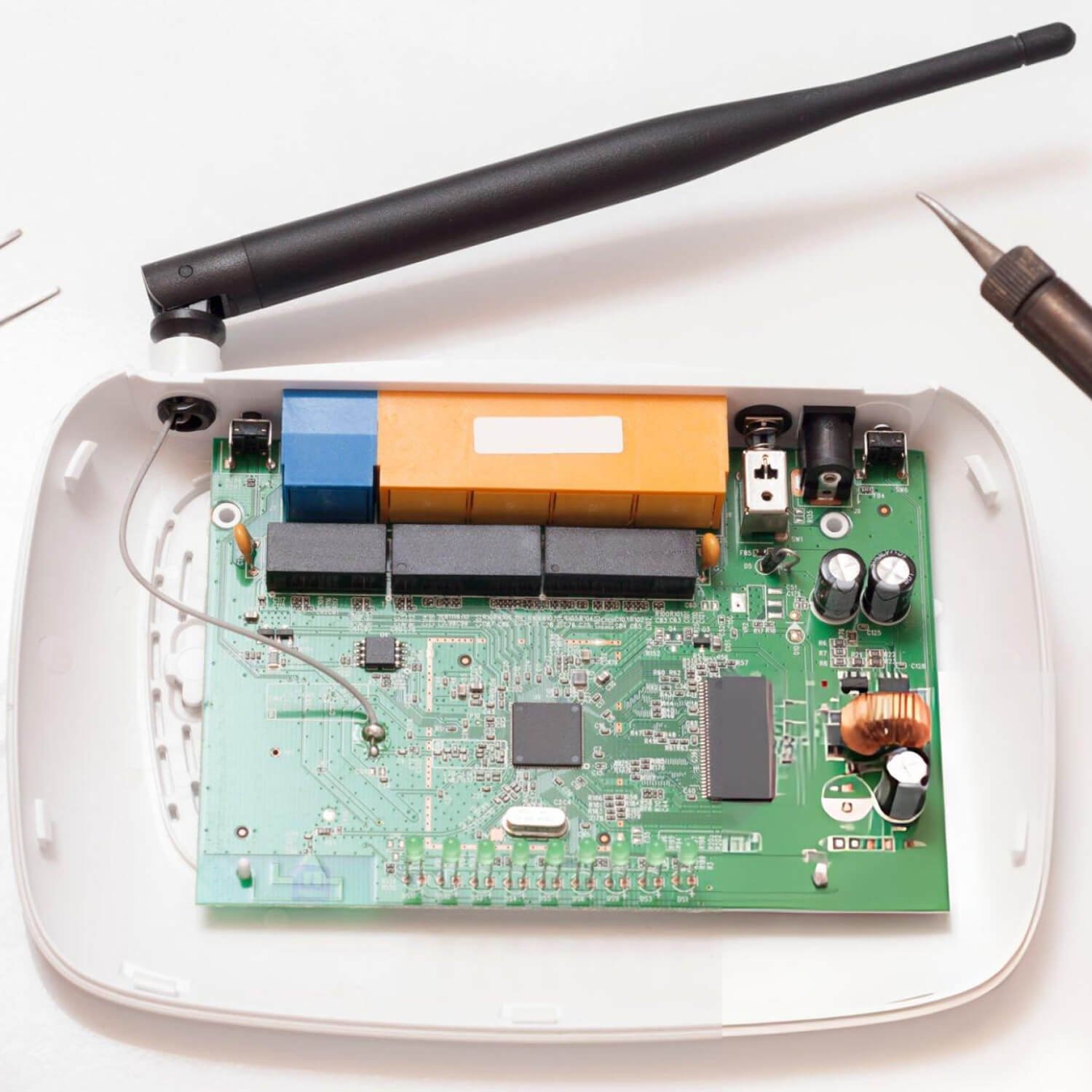

Wifi Router PCB Component

We ensure that every component in our Wifi Router PCB meets strict quality and performance standards.

Wifi Router PCB Component

The MCU or SoC is the core of the Wifi Router PCB. It can process data and control all router functions.

Functions:

  • Executes firmware and networking protocols
  • Manages data routing and packet processing
  • Controls communication between components

The WiFi chipset is responsible for wireless communication by handling both signal processing and radio frequency transmission.

Functions:

  • Converts digital data into RF signals and vice versa
  • Manages modulation and demodulation
  • Supports wireless standards (WiFi 4/5/6/7)

The Power Amplifier boosts outgoing RF signals to extend transmission range.

The LNA strengthens incoming signals while minimizing added noise.

The RF matching network ensures efficient signal transfer between the RF components and the antenna.

Key Elements:

  • Capacitors and inductors
  • Impedance matching circuits

Oscillators provide precise clock signals required for synchronization across the entire Wifi Router PCB.

Functions:

  • Maintain timing accuracy
  • Stabilize data transmission
  • Support RF signal generation

These components enable wired network connectivity and interface with Ethernet ports.

Functions:

  • Physical layer signal transmission
  • Data conversion between digital and analog signals
  • Supports 10/100/1000 Mbps Ethernet

The antenna transmits and receives wireless signals.

Types:

  • PCB trace antennas
  • External antennas (via connectors)

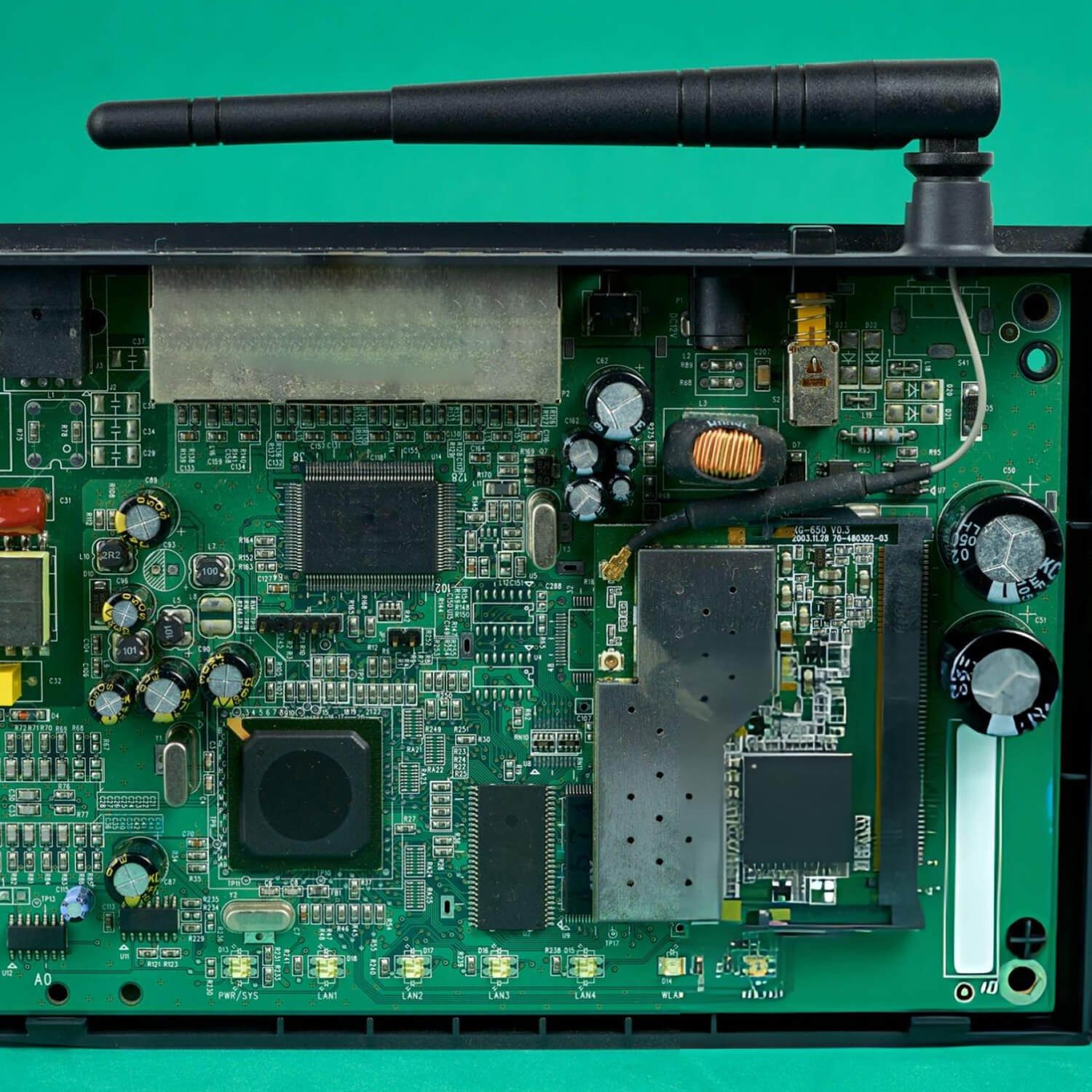

Wifi Router PCB Design

We used advanced design to ensure every Wifi Router PCB can deliver stable wireless connectivity, minimal signal loss, and long-term reliability.

Wifi Router PCB Design

Impedance control is important in Wifi Router PCB, especially for RF and high-speed digital signals.

We need to:

  • Maintain consistent impedance (typically 50Ω for RF traces)
  • Prevent signal reflections and transmission loss
  • Use controlled stack-up and trace geometry

Proper RF layout is essential to ensure efficient signal transmission and minimal interference.

We need to:

  • Keep RF traces as short and straight as possible
  • Avoid sharp bends (use 45° angles or curves)
  • Isolate RF sections from noisy digital circuits
  • Place RF components close together

Electromagnetic interference can degrade performance and cause compliance issues.

We Can:

  • Use continuous ground planes
  • Implement shielding for RF modules
  • Maintain proper trace spacing
  • Apply filtering components where needed

.

Stable power is essential for reliable router operation.

We need to:

  • Use high-quality voltage regulators
  • Place decoupling capacitors close to ICs
  • Separate analog and digital power domains

The antenna is a critical element in wireless performance.

We need to:

  • Maintain proper clearance around the antenna
  • Avoid metal obstructions
  • Match impedance between antenna and RF circuit

Why Choose Us

With advanced equipment and engineering expertise, our Wifi Router PCB can deliver stable wireless communication, high-speed data transmission, and long-term reliability.

Flex PCB Manufacturring Process

Turnkey PCB Solution

We provide a complete end-to-end service, eliminating the complexity of managing multiple vendors. We can do:

  • PCB design and engineering support
  • PCB fabrication Component sourcing
  • PCB assembly (SMT, THT, mixed)
  • Final testing and quality assurance

Flex PCB Manufacturring Process

Quality

We adhere to globally recognized standards:

  • IPC-A-610 Class 3 (high-reliability electronics)
  • IPC-6012 (PCB performance standards)
  • ISO 9001
  • ISO 14001
  • UL 94

Flex PCB Manufacturring Process

Advanced Manufacturing

Our state-of-the-art facilities support complex and high-precision PCB assembly. We can do:

  • Fine-pitch placement down to 0.38mm
  • BGA (0.2mm pitch) with X-ray inspection
  • Support for 0201 components
  • High-density multilayer PCBs
  • Mixed technology assembly (SMT + Through-hole)

Flex PCB Manufacturring Process

Testing & Inspection

We implement multi-level testing to ensure every PCBA meets strict performance requirements.

  • AOI (Automated Optical Inspection)
  • X-ray inspection for hidden solder joints
  • In-Circuit Testing (ICT)
  • Functional testing under real operating conditions
  • Voltage and performance validation

PTH
copper immersion
Degumming Residue
sink gold
PCB Drill Machine
PcB Manufacturing Machine
Etching
Imaging room
PCB Test Machine
PCB Checking
PCB Checking Machine
PCB Chechking
PCB AOI
Link Master
Drill Machine
checking machine
screen printing machine
Eye Checking

Fast Quotation

Our professional sales and engineering teams provide fast PCB quotes and technical support. Simply send us your Gerber files, BOM, and assembly drawings, and we will respond promptly with a competitive solution.

FAQ About Drone PCB?

1. What is a Wifi Router PCB?

A Wifi Router PCB is the core circuit board inside a wireless router that enables communication between devices through radio frequency (RF) signals.

It integrates components such as the microcontroller, WiFi chipset, antennas, and power management circuits to deliver stable wired and wireless connectivity.

The most common materials include:

  • FR-4 for standard applications
  • High-frequency laminates (such as Rogers or Taconic) for advanced designs
  • Copper layers (1 oz to 2 oz typical thickness)

Material selection depends on the required frequency, signal integrity, and cost considerations.

Most Wifi Router PCB designs use:

  • 2 layers for simple applications
  • 4–8 layers for standard routers
  • 8+ layers for high-performance or enterprise-grade devices

More layers allow better signal routing, EMI control, and power distribution.

Modern Wifi Router PCB designs support:

  • 2.4GHz (longer range)
  • 5GHz (higher speed, less interference)
  • Emerging 6GHz band (WiFi 6E / WiFi 7)

We apply advanced design and manufacturing techniques such as:

  • Controlled impedance routing
  • Optimized multilayer stack-up
  • Proper grounding and shielding

These practices minimize signal loss and ensure stable performance.

You can request a quote by providing:

  • PCB design files (Gerber files)
  • Bill of Materials (BOM)
  • Quantity
  • Special specifications

Our team will respond quickly with a competitive quotation.
